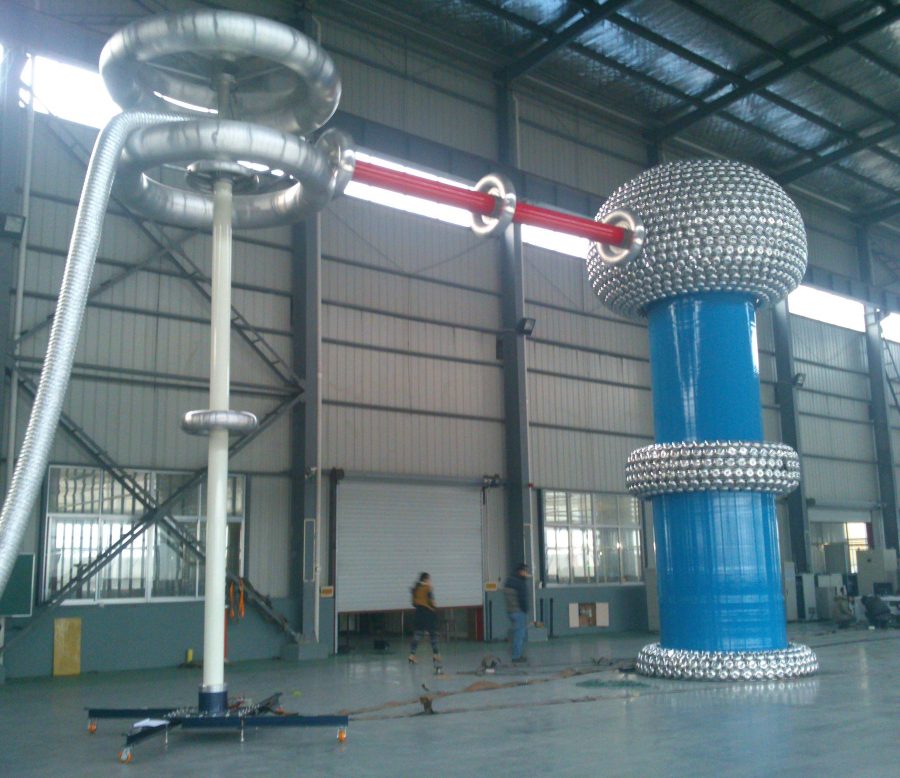

Voltage Divider

Voltage divider has the below different kinds:
1.impulse voltage divider for impulse measurement upto 4000kV;
2.resistive voltage divider for DC measurement;

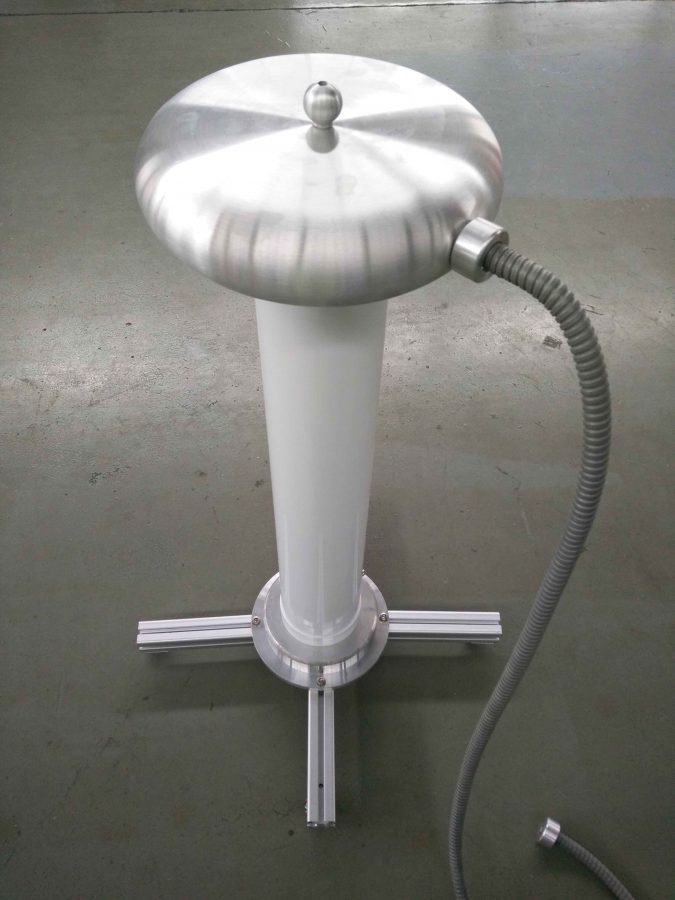

3.capacitive voltage divider used for AC measurement;
4.capacitive and resistive voltage divider for AC and DC measurement

Additional Product Information

Features & Benefits

Voltage divider has the below kinds:

1.Impulse voltage divider for measurement of LI, SI and LIC from 100kV to 3600kV (Capacitance 300~1000pF, Measuring accuracy: ≤±3%);

2.Capacitive voltage divider for AC measurement from 50kV to 2000kV (Measuring accuracy: ≤±1%);

3.Resistive voltage divider for DC measurement from 20kV to 2400kV (Measuring accuracy: ≤±1%);

4. AC, DC or Impulse measurement;

Applications

Voltage divider has the below kinds:

1.Impulse voltage divider for measurement of LI, SI and LIC from 100kV to 3600kV (Capacitance 300~1000pF, Measuring accuracy: ≤±3%);

2.Capacitive voltage divider for AC measurement from 50kV to 2000kV (Measuring accuracy: ≤±1%);

3.Resistive voltage divider for DC measurement from 20kV to 2400kV (Measuring accuracy: ≤±1%);

4. AC, DC or Impulse measurement;



Technical Parameters

We can do custom made.

You are welcome to contact us for detailed technical information.

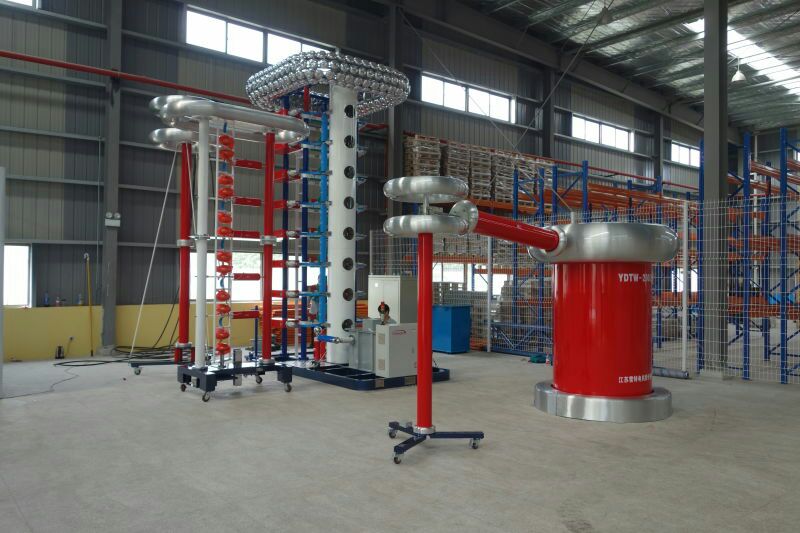

  1. Impulse voltage divider upto 4000kV;
Model No Rated Voltage L.I. 1.2/50μs

kV

Rated Voltage S.I. 250/2500μs kV Rated Capacitance pF
SXVD-400/300 300 240



300~600

SXVD-400/400 400 320
SXVD-400/600 600 480
SXVD-300/800 800 640
SXVD-300/900 900 720
SXVD-300/1200 1200 960
SXVD-300/1600 1600 1280



300~1000



SXVD-300/1800 1800 1440
SXVD-300/2400 2400 1920
SXVD-400/3000 3000 2400
SXVD-400/3600 3600 2880







Standards

IEC60060
