We are specialized in manufacturing different kinds of HV test equipment, such as DC HV generators, impulse voltage generators, impulse current generators, combination wave generator, PD free AC test systems, AC resonant systems, cable testing systems, control and measurement systems, etc.
Surge generator (Impulse voltage generator) can be used to generate impulse of exponential shapes to perform high energy surge tests. The system can output 1.2/50μs up to 30kV to test solar panels.

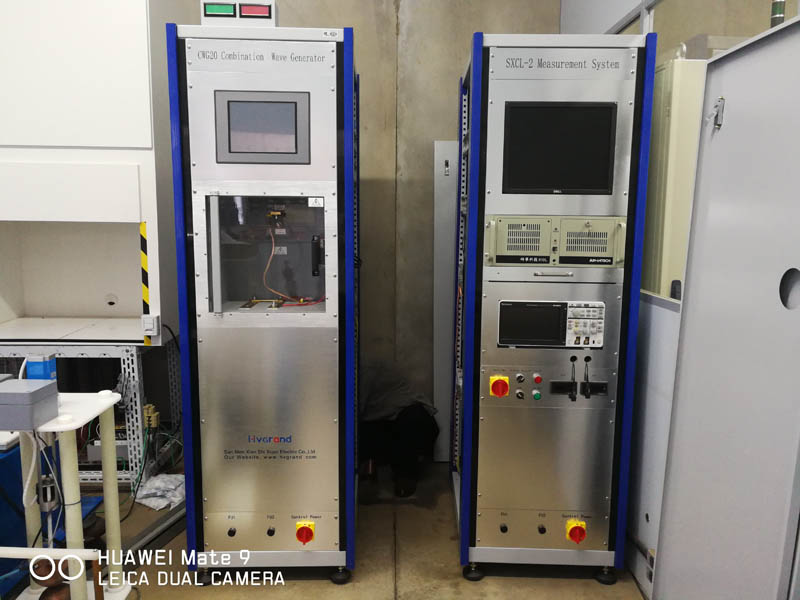

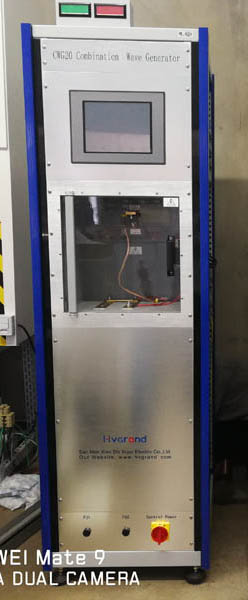

The left cabinet (called control cabinet) consists of green& red light, touch panel, testing housing, PLC controlled, control software, wave resistors, charging unit, discharge unit, automatic earthing system and impulse capacitors.
The right cabinet (called measurement cabinet) consists of Dell computer screen with impulse analysis software, Advantech industrial computer and American Tektronix oscilloscope.
GSCW-20 surge generator (impulse voltage generator) can be used to generate lightning impulse voltage (1.2/50μs upto 20kV) for the testing of LV products and surge protective devices.
The generator can test the load with maximum 30nF (measuring cable included). Impedance is adjustable.

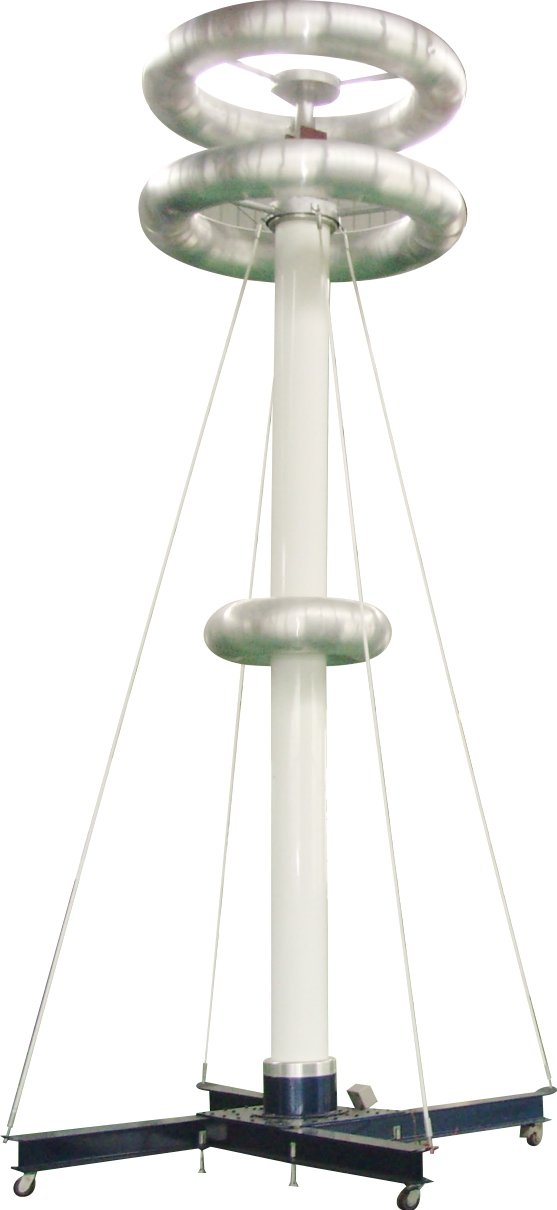

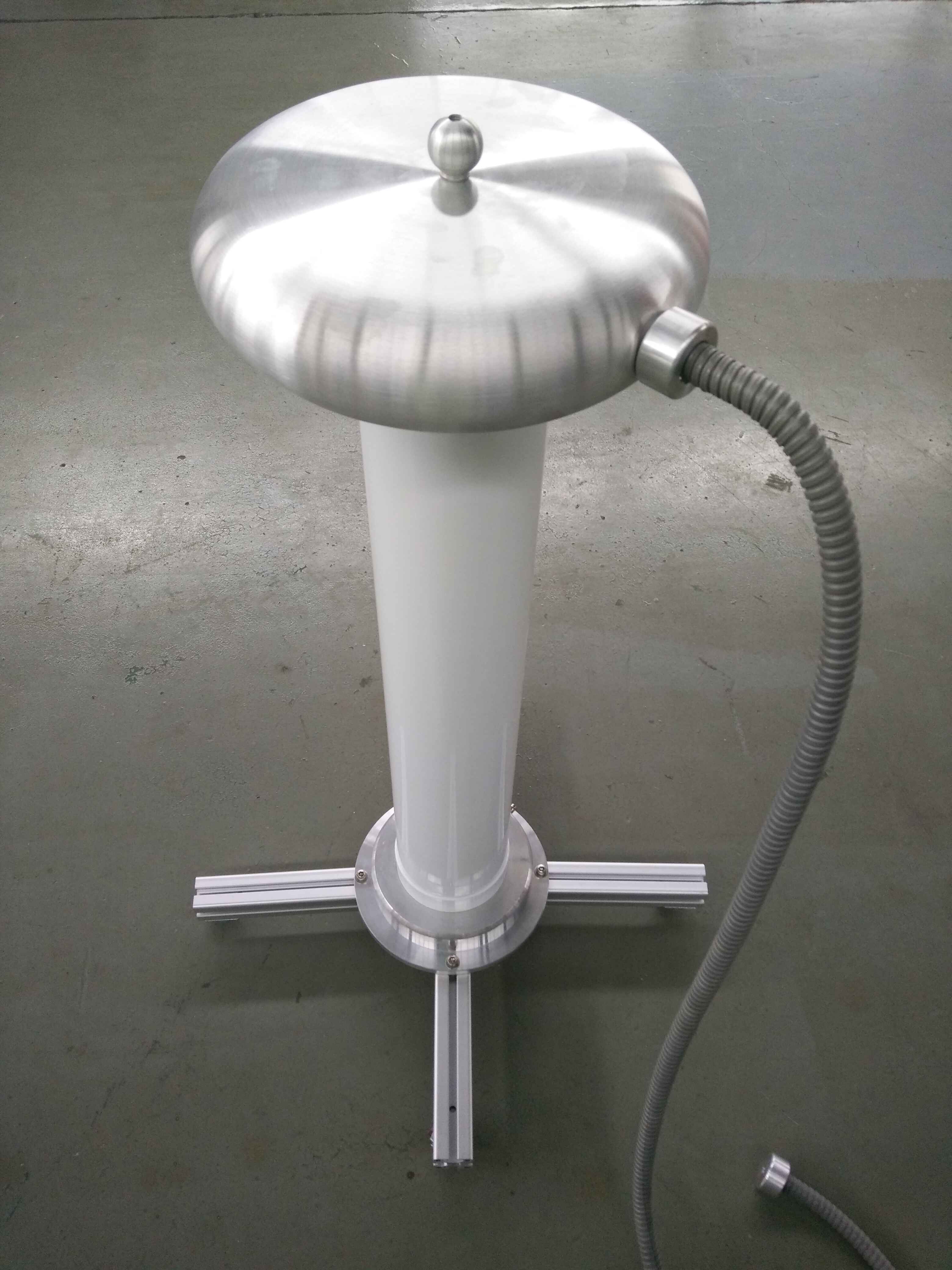

AC voltage divider is capacitive voltage divider for AC measurement.
It can also be used as coupling capacitor for partial discharge measurement.

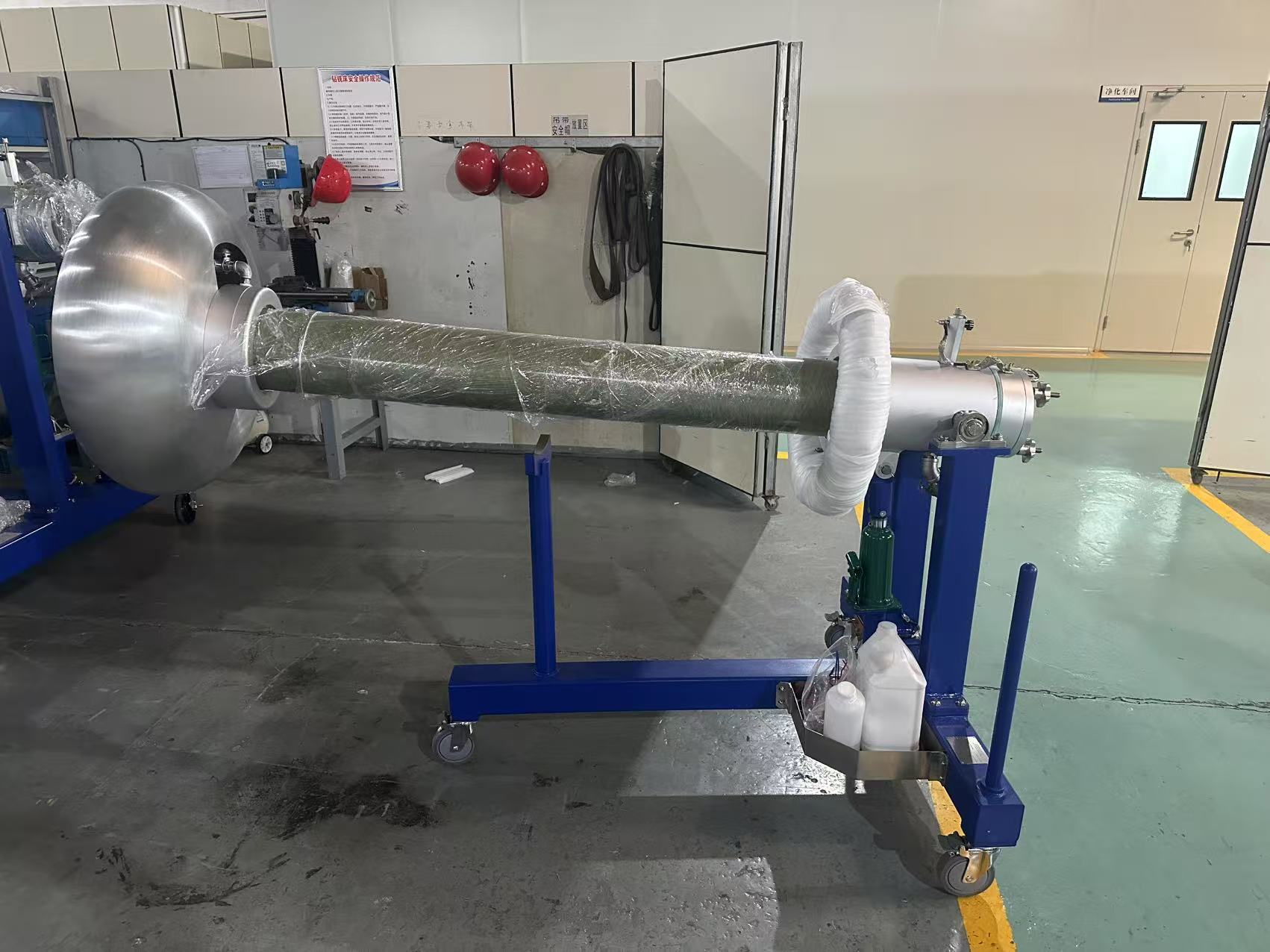

SXCTT-400 cable test termination (water termination) is for PD and AC test for XLPE cables up to 220kV.
Learn more
SXCTT-500 cable test termination (water termination) is for PD and AC test for XLPE cables up to 330kV.
Learn more

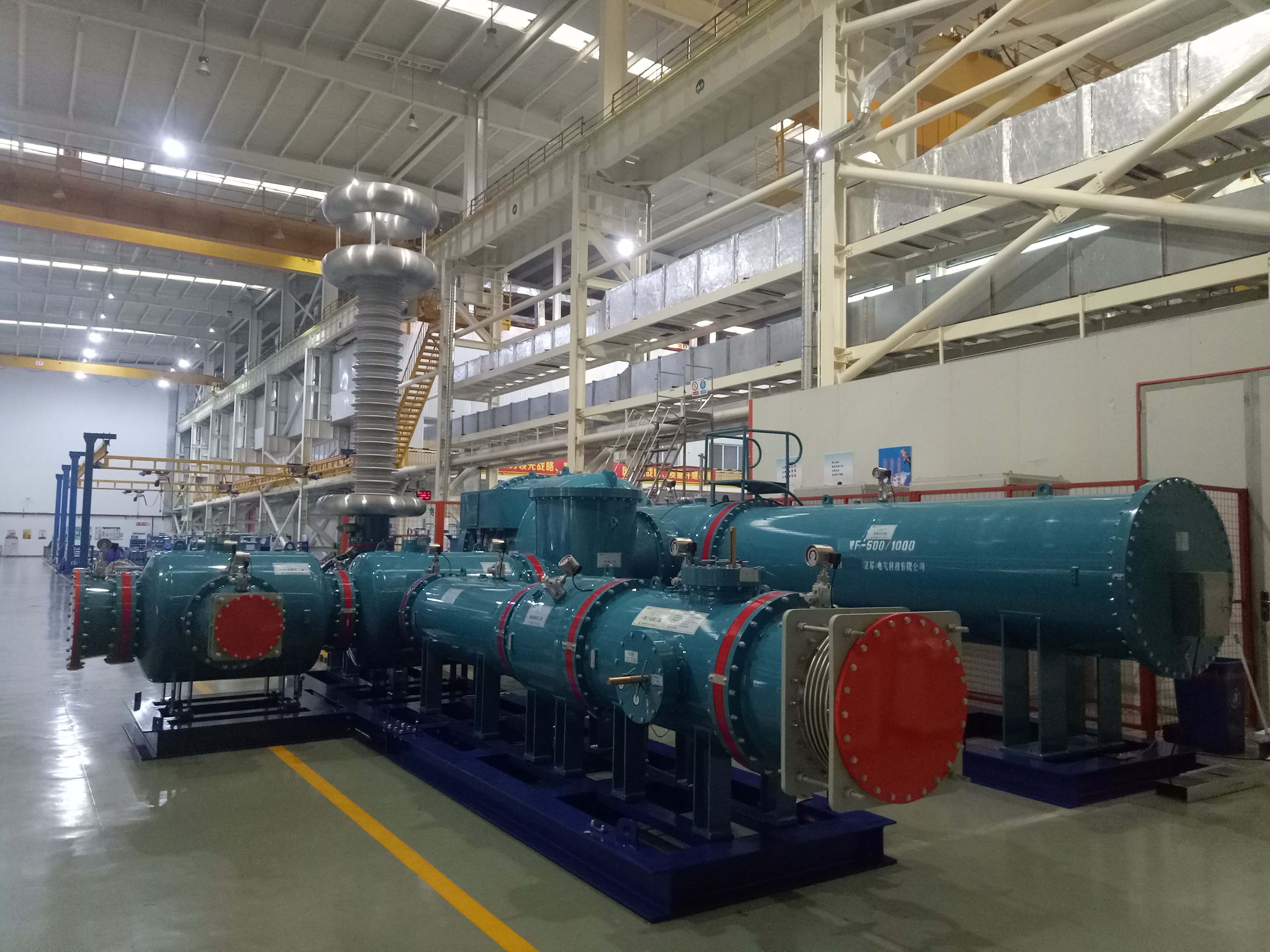

The Gas Insulated AC voltage test system with AC test transformer is used to do AC voltage test of GIS, GIL, gas instrument transformers. With partial discharge detector, it can also be used to do the PD measurement.
Learn more
Surge generator (combination wave generator) can be used to generate impulse of exponential shapes to perform high energy surge tests. The system can output 8/20μs, 10/350μs, 10/700μs, 5/300μs according to the customer's requirement.
Learn more
This AC test transformer adopts advanced new technology of coil winding, epoxy vacuum pouring and CD-type iron core, which obviously reduce weight and volume, improve insulating strength and humidity resistance level.
The transformers have light weight, small volume, beautiful appearance, stable performance and convenient operation, which are especially suitable for onsite operation. The transformers are applicable for the power systems and all power users to detect on site the insulating performance test of all electrical equipment. The transformers can be used as the perfect high voltage power sources of all appliance's voltage system.

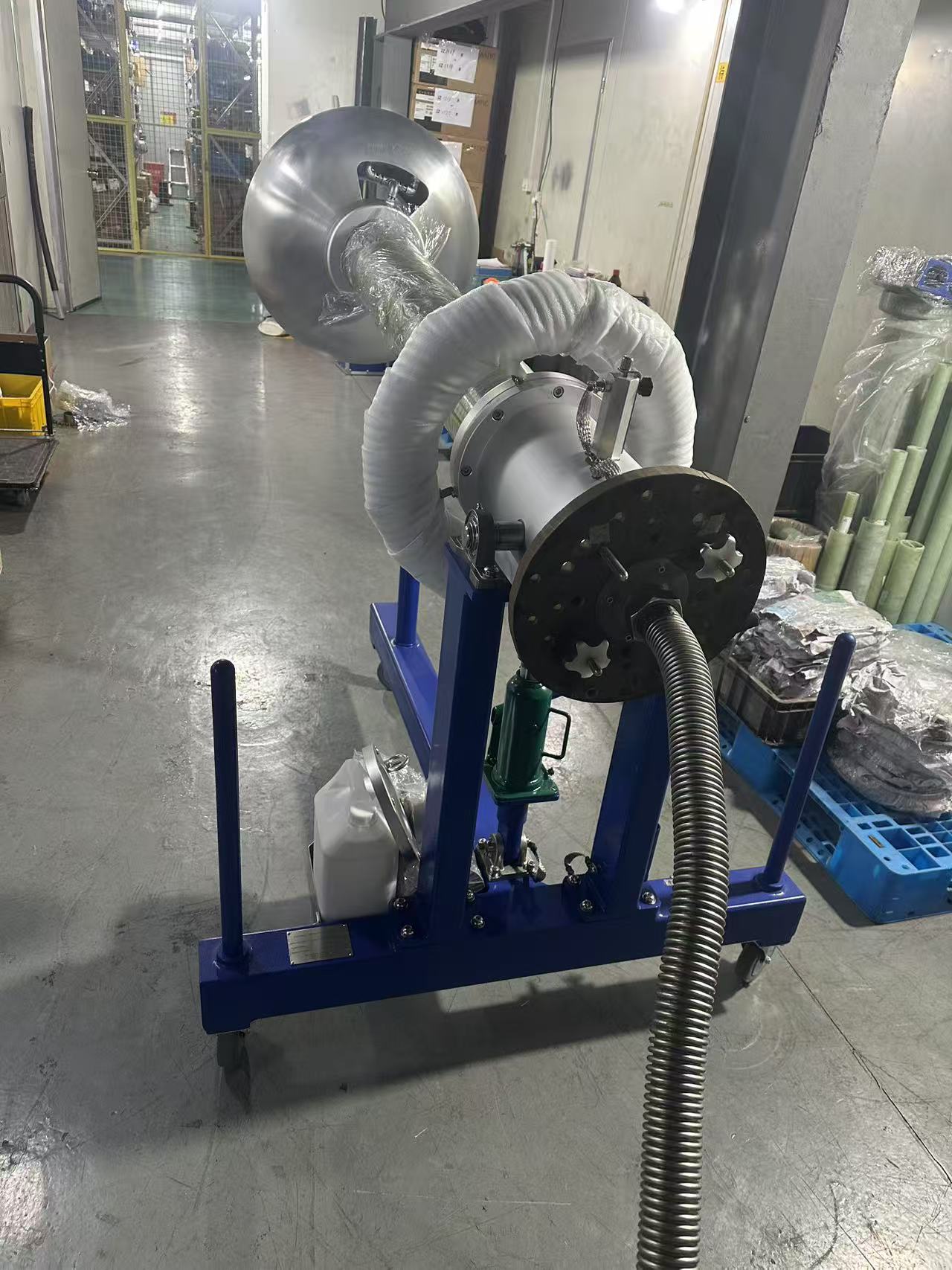

SXCTT-200 cable test termination (water termination) is for PD and AC test for XLPE cables up to 110kV.
Learn more

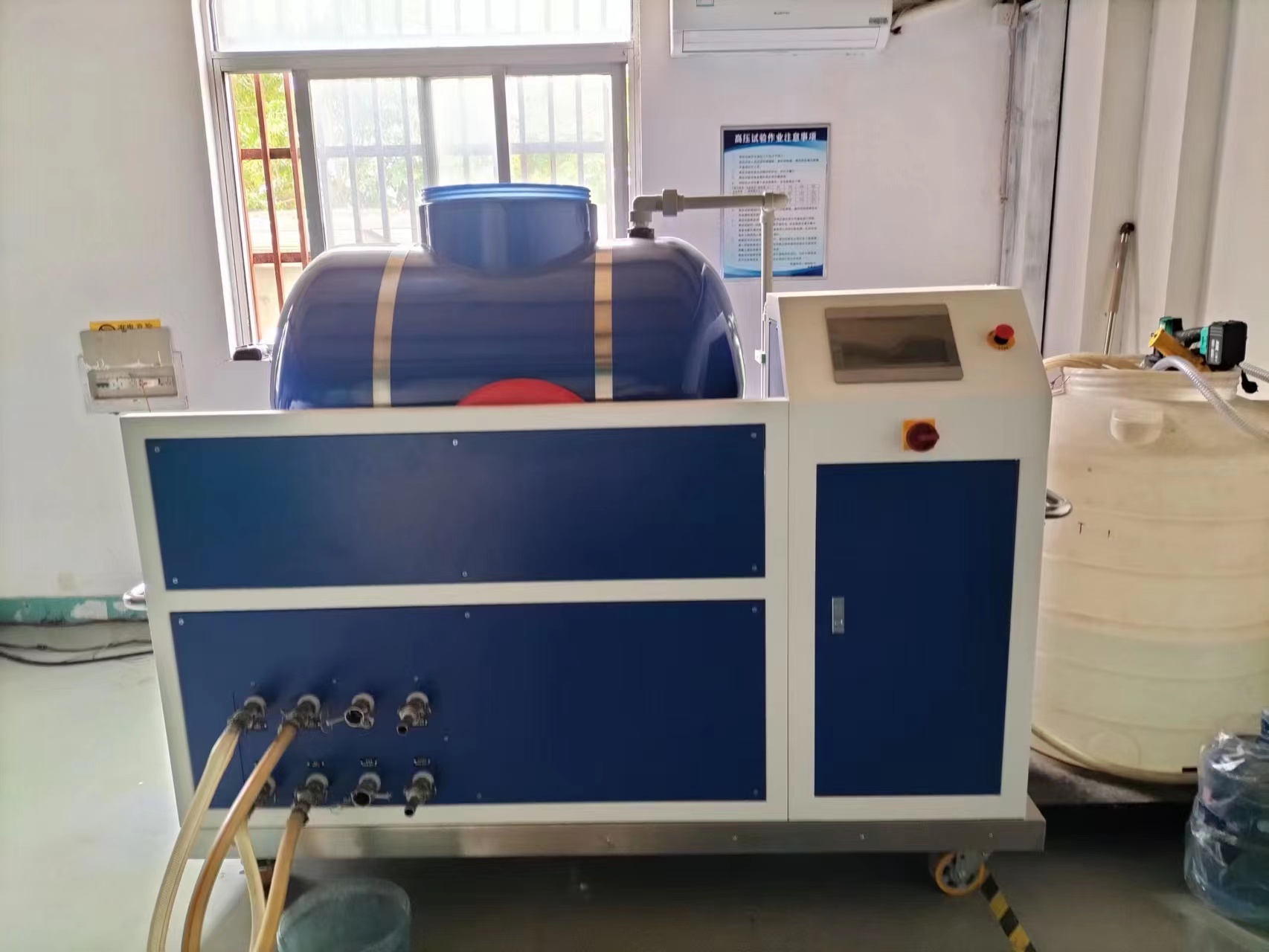

The water processing unit regulates the conductivity of the water and serves as cooling system. In routine AC test, the water processing unit and the water cable test termination form a close water circuit.
To ensure ample thermal stability, the unit has a tank holding up to 600L deionized water.
The water processing unit allows automatic filling of the water cable test termination with conductive water for lighting impulse test.

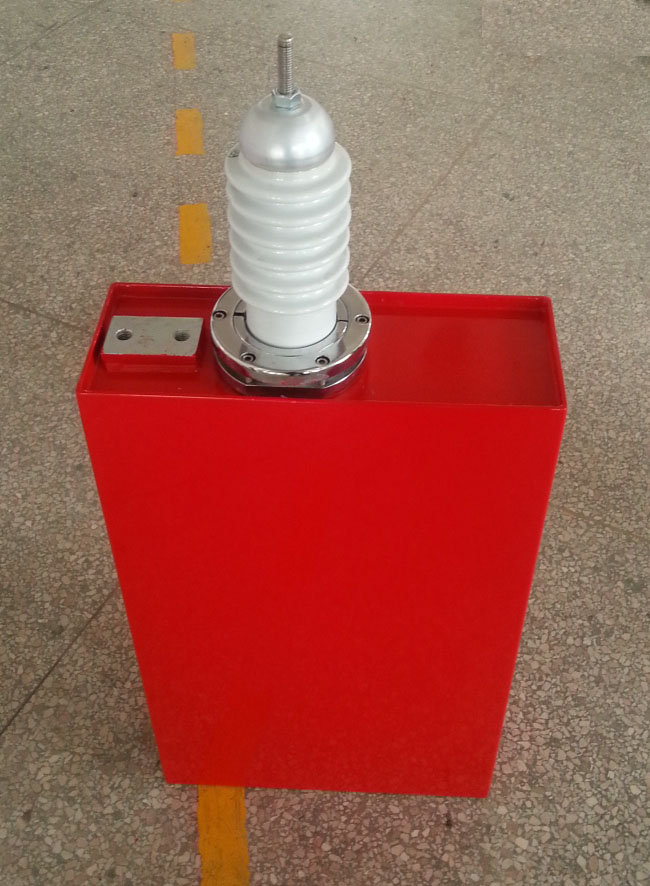

The impulse capacitors are mainly used in the pulse power, electromagnetic weapons, oscillation circuit, damped oscillating current and other impulse devices. The impulse capacitors are designed for indoor usage. They are dry type and the filler is Polyurethane.
Learn more

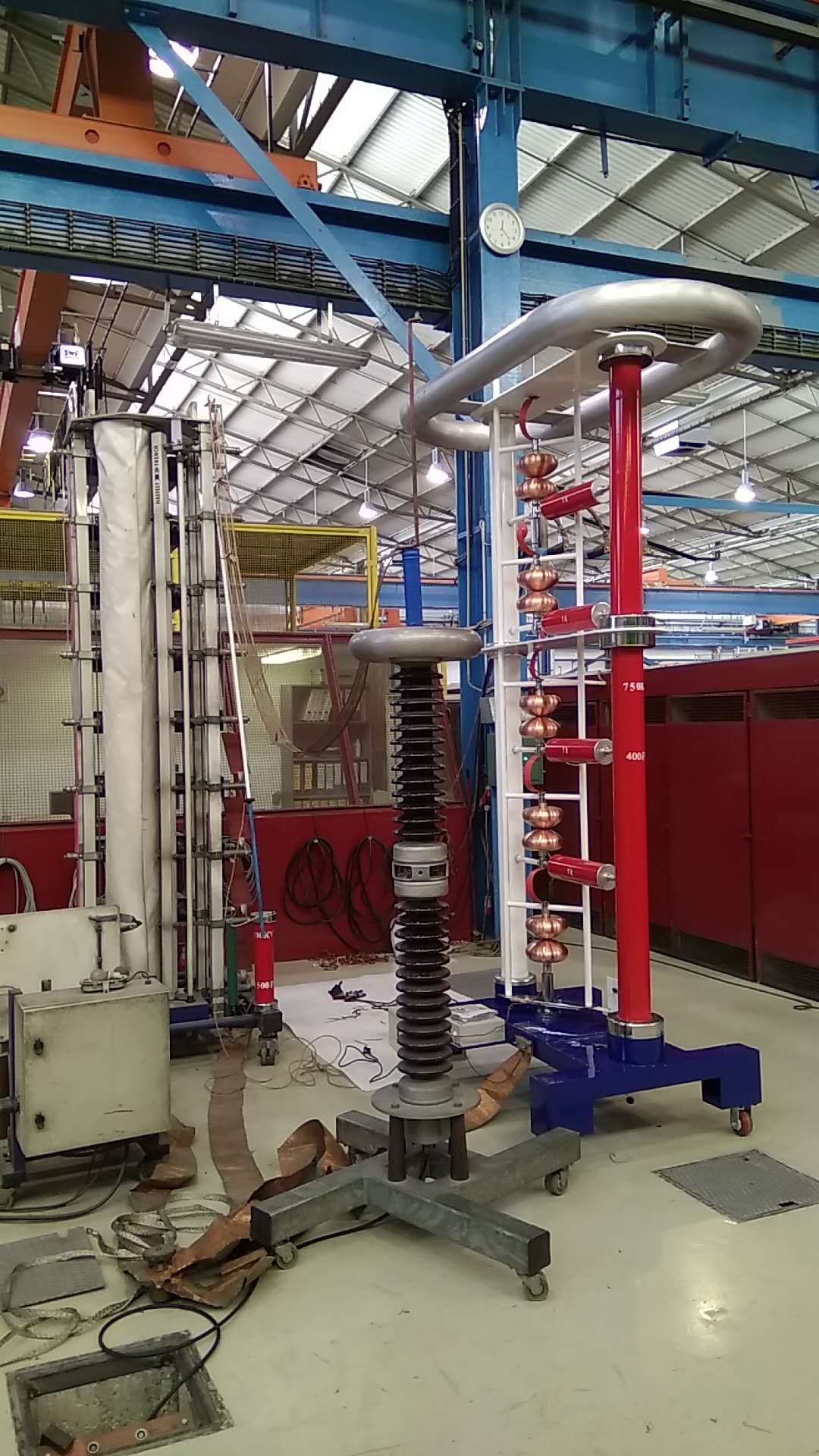

Impulse voltage generator can be used to generate impulse voltages simulating lightning impulse (1.2±30%/50±20%μs), chopped lightning impulse (chopped time between 2~6μs to test power transformers, instrument /voltage transformers and bushings), switching impulse (250±10%/2500±10% μs) and steep front waveforms (to test glass insulator, composite insulators or ceramic insulators) .
Learn more

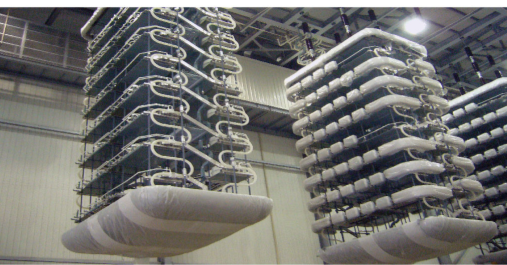

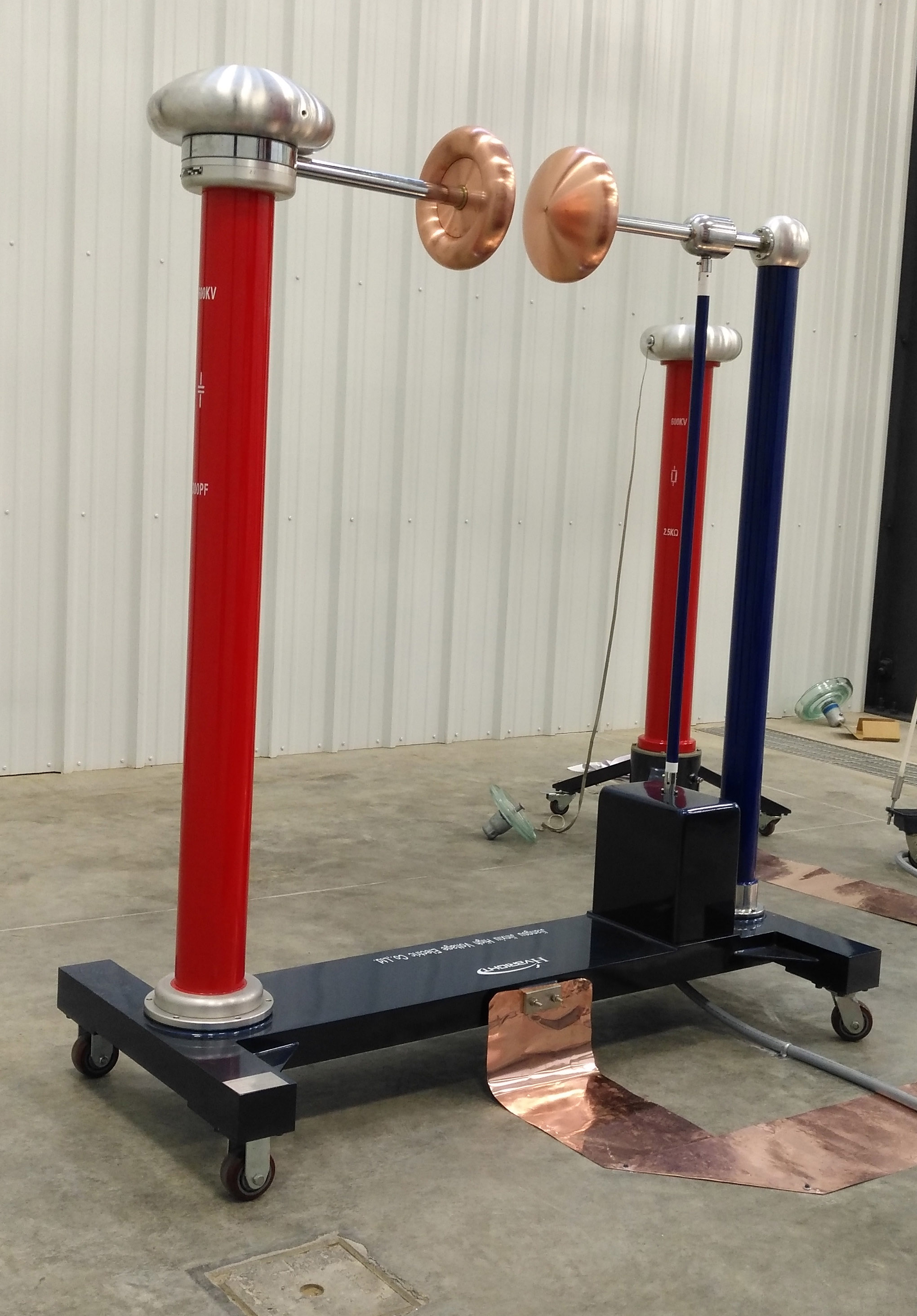

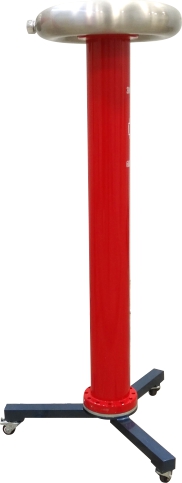

DC voltage divider is a resistive voltage divider for the measurement of HVDC power source or DC transmission.

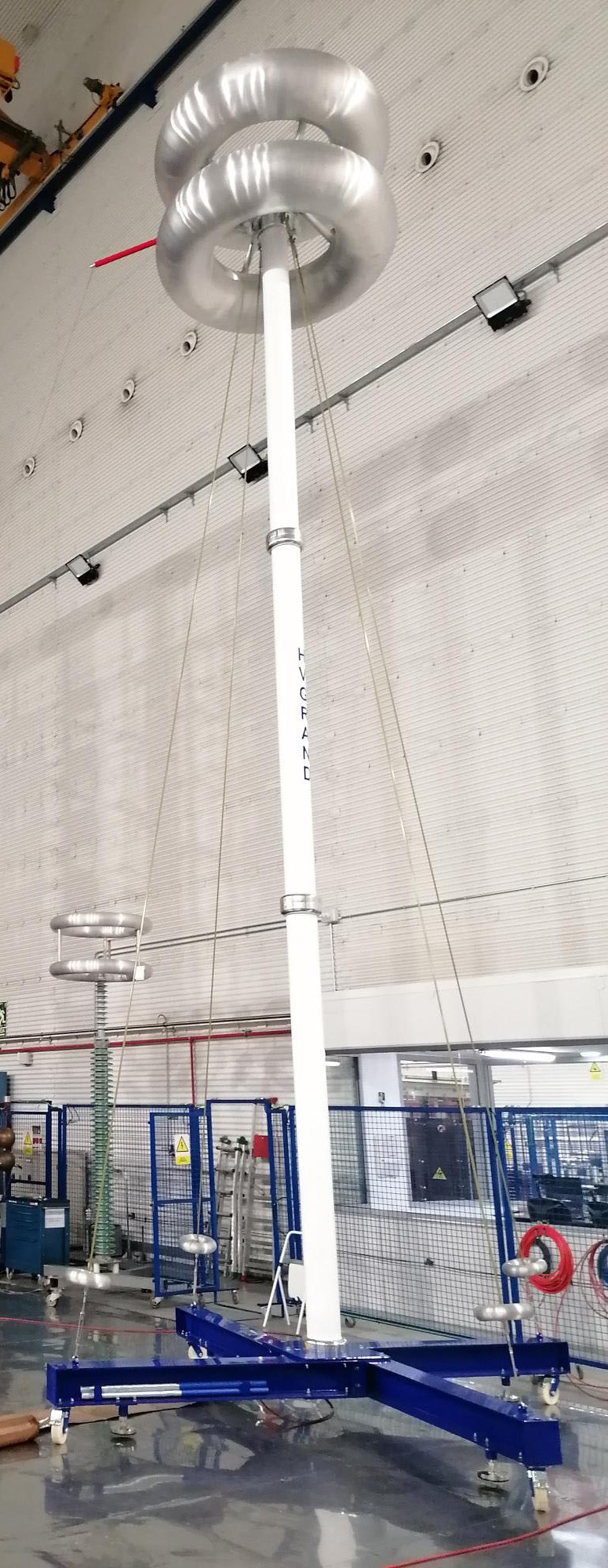

Impulse voltage divider is used to measure high voltage full and tail chopped lightning and full switching impulses. Provided with an adequate additional secondary part, it can also be used for alternating voltage measurements.
It has wheels at the bottom for easy movement and corona rings at the top.

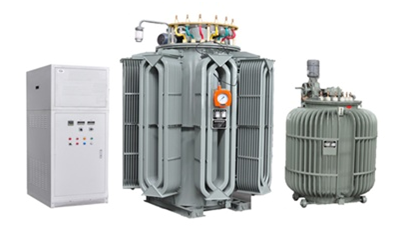

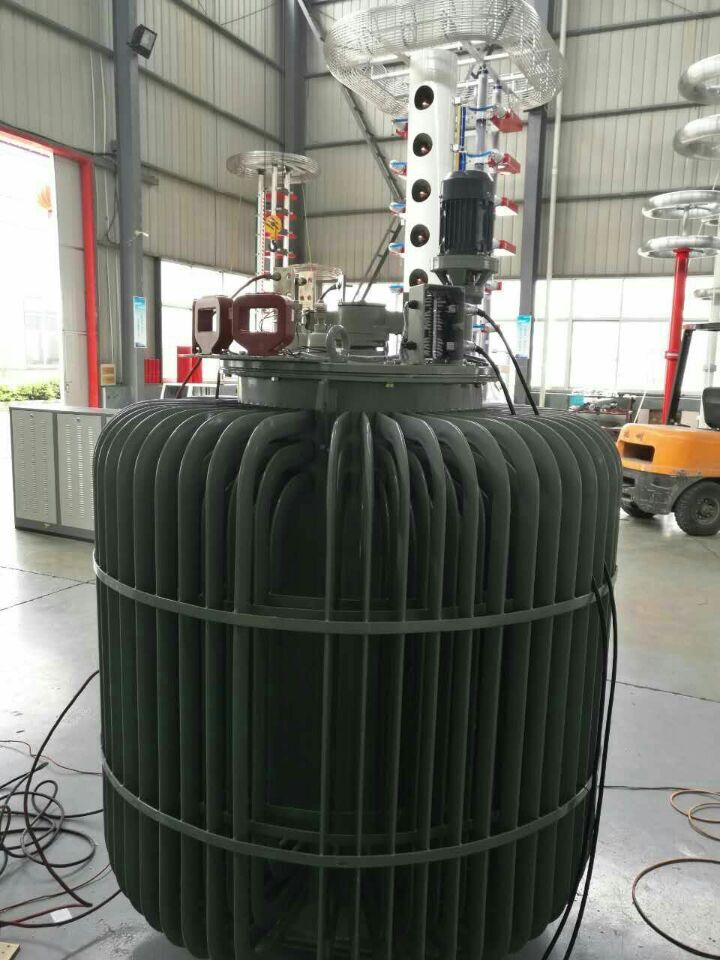

This series of regulating transformer can regulate the output voltage steplessly, smoothly and continuously on load. As it has low impedance voltage and low waveform distortion ratio, it is widely used as the power source for the testing of motors, transformers and switchgears. In addition, it can also be used as one component of rectifier device, DC speed adjustment, communication device and medical instrument.
Learn more
Surge generator (combination wave generator) can be used to generate impulse of exponential shapes to perform high energy surge tests. The system can output 8/20μs, 10/350μs, 10/700μs, 5/300μs according to the customer's requirement.
Learn more
We can make different kinds of aluminum screens.
We can do custom made as per the customer's drawings.
Aluminum Shielded Tubes are widely used in the high voltage test in the HV test lab.
We can do custom made as per the customer's dimensional drawings.
This series of 3 phase regulating transformer is applicable for the testing of transformers or motors upto 10kV. Induced regulating transformer is developed for the no-load, on-load test of transformers.
Learn more

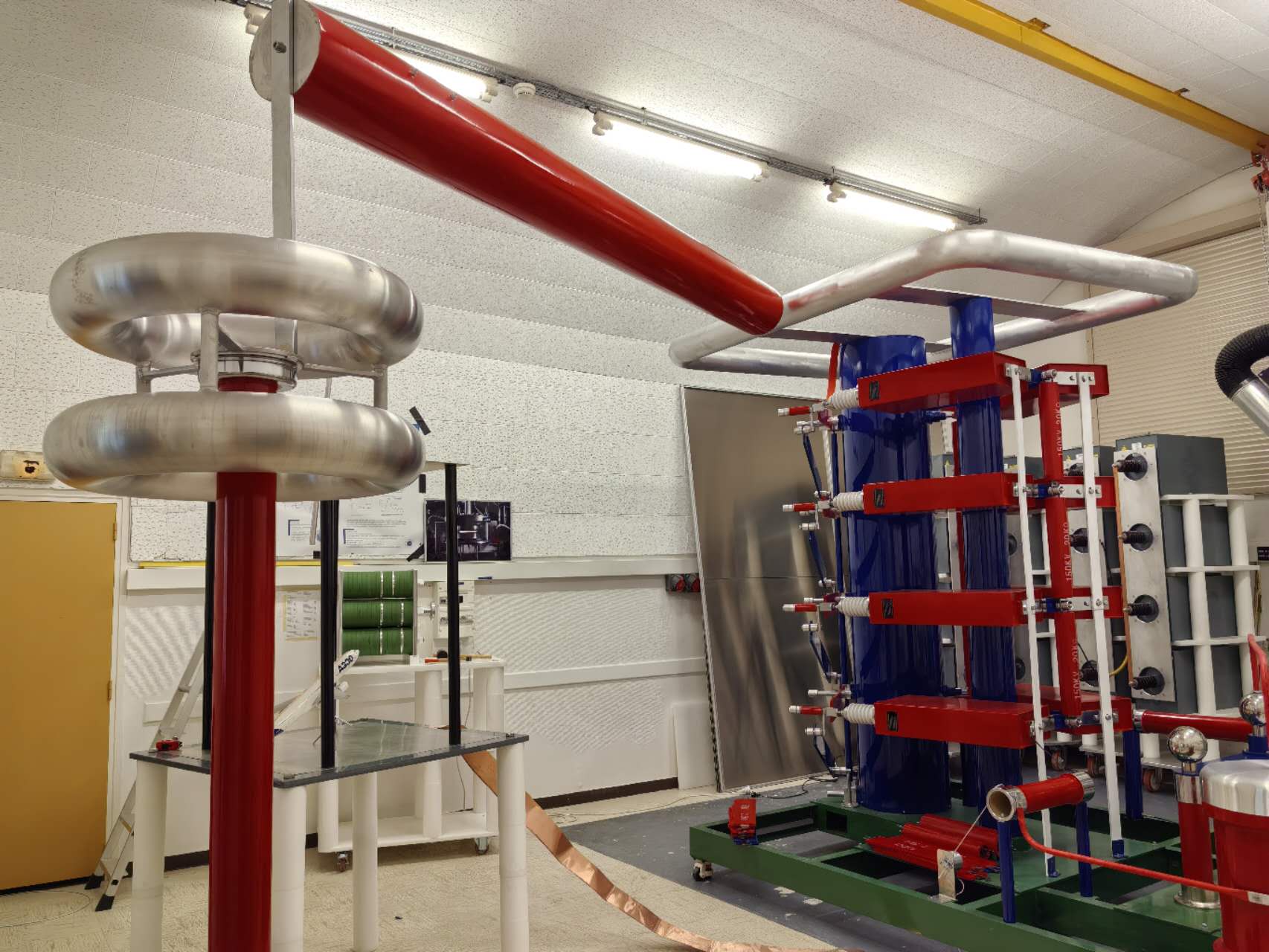

The aircraft is easy to be attacked by the direct lightning when it flies in the convective environment, which will generate high temperature, high pressure and strong electromagnetic force. This will cause some bad affection to the aircraft, such as burn, explosion, structural aberration, etc. The lightning stroke system for direct current test on aircraft (model SXFJ-180612) is developed by our company and can simulate the direct lightning stoke with component A,B,C,D waveforms. It includes four sets impulse current test systems.
Learn more

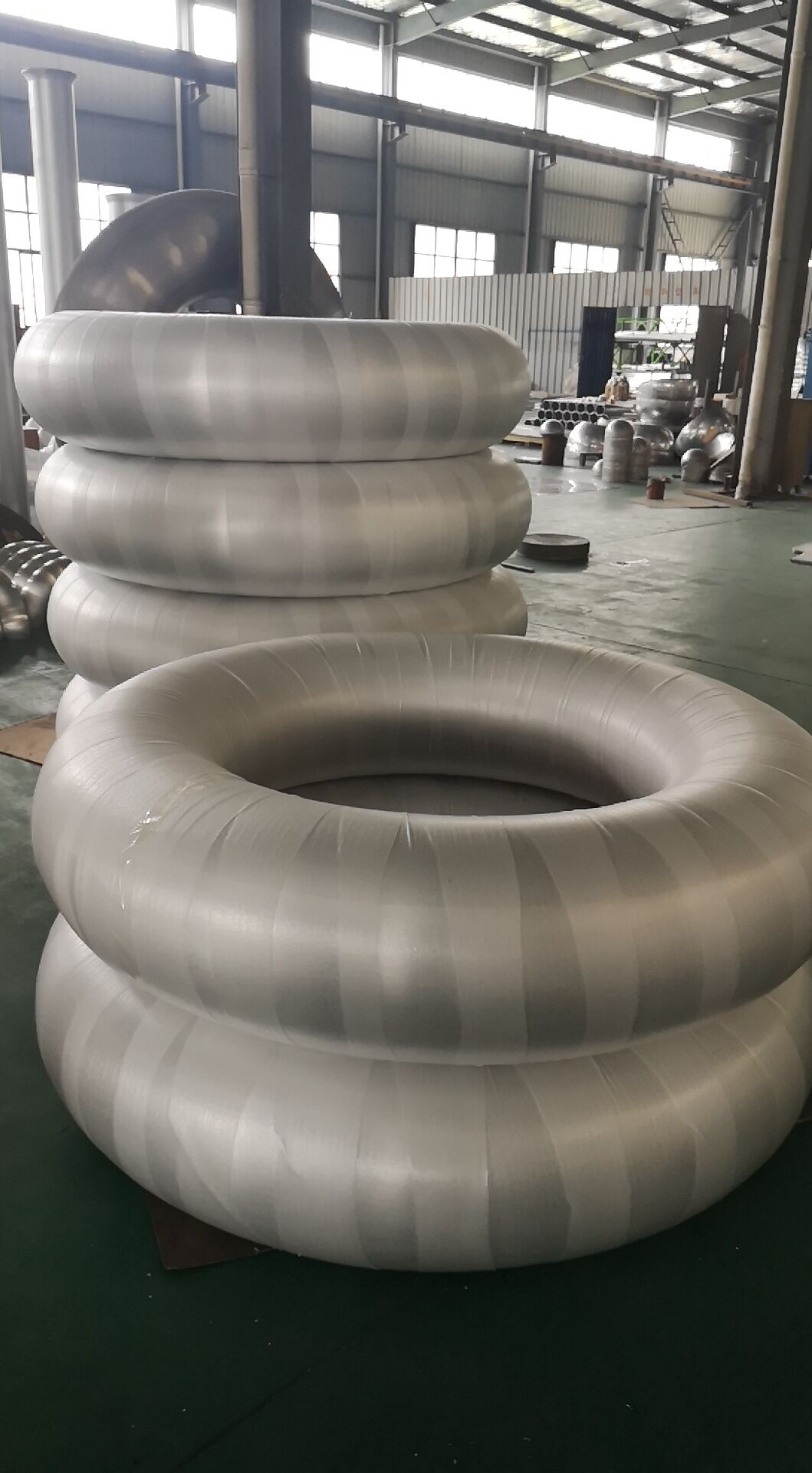

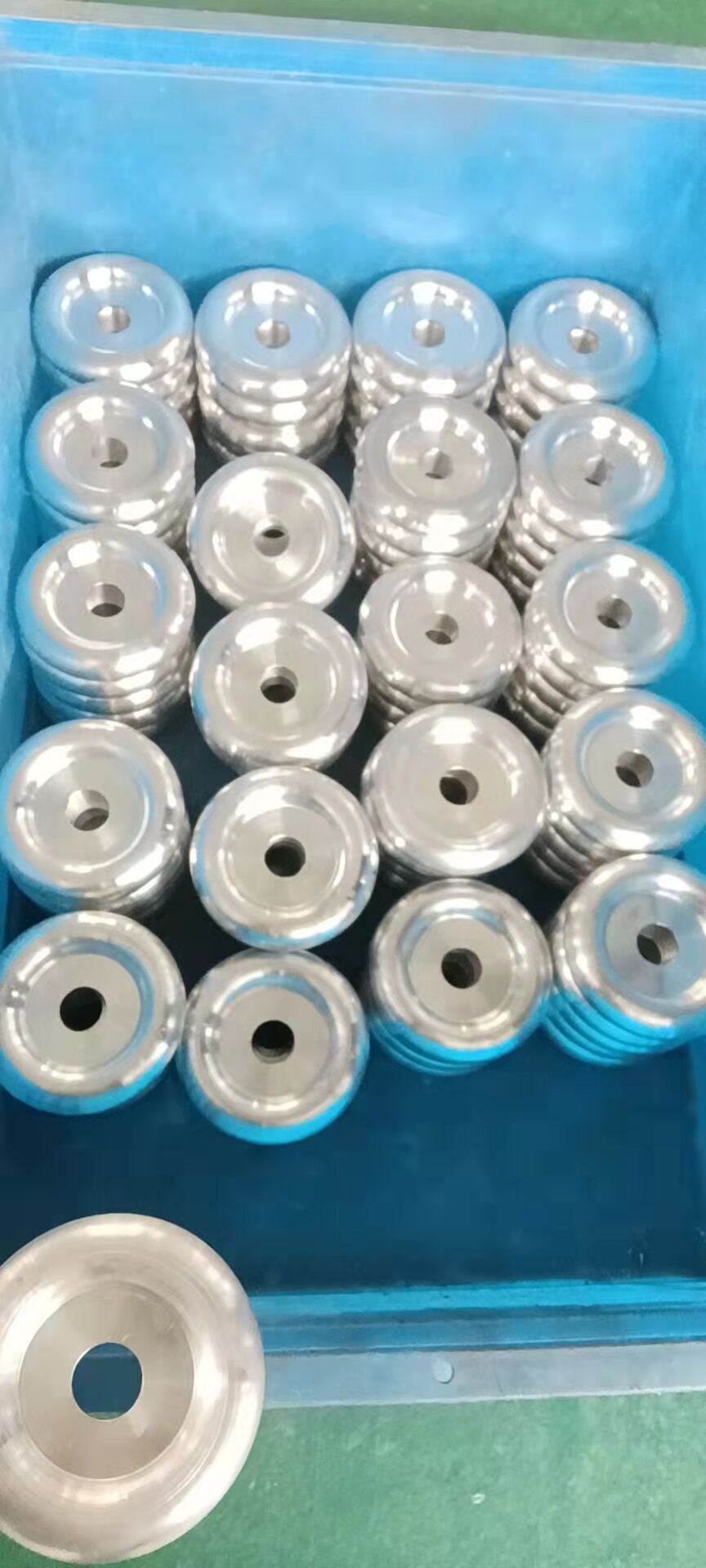

We can manufacture different kinds of corona rings or shielded parts.
You are welcome to send us the drawings for a quotation.
We can do custome made.

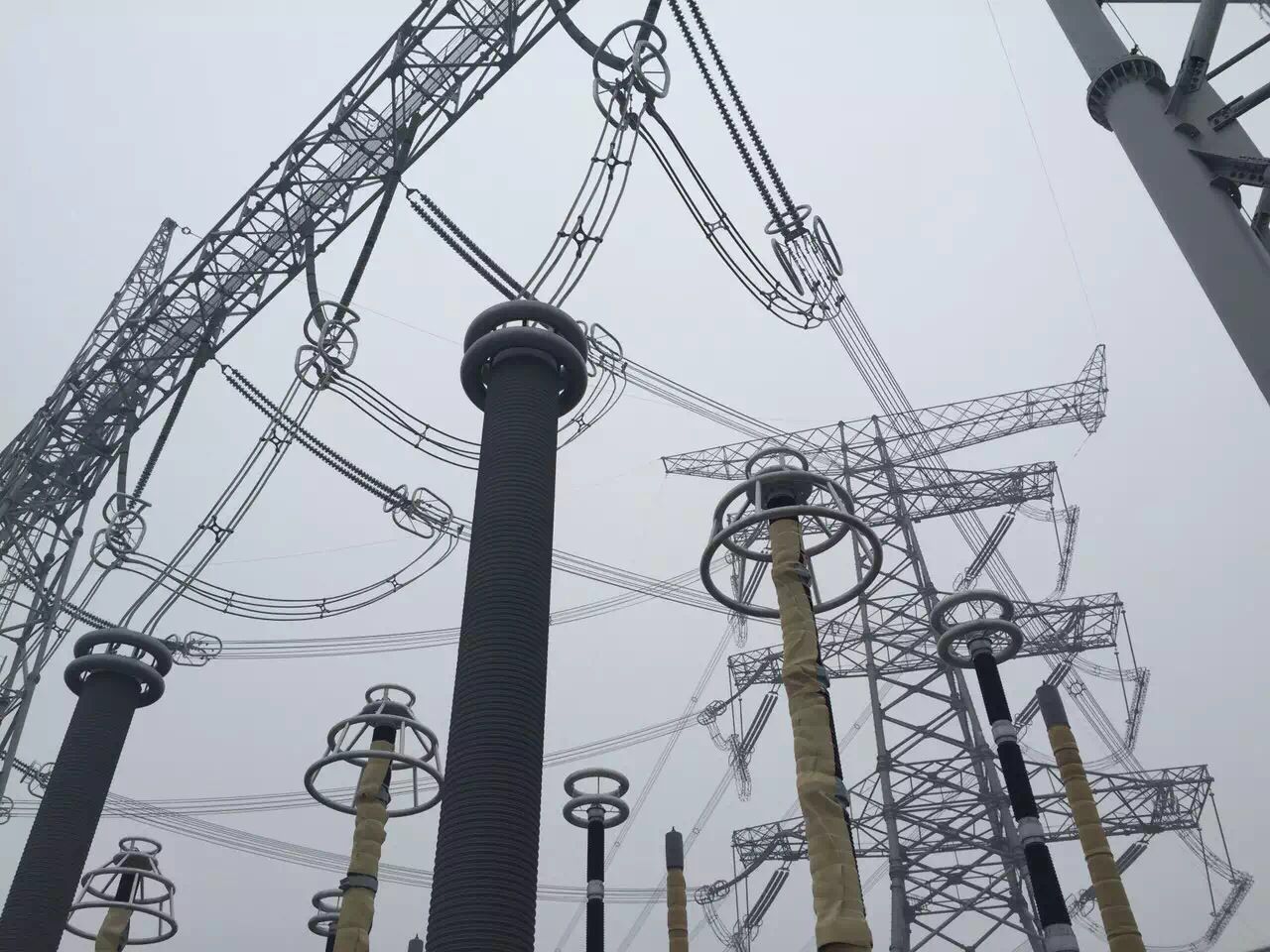

The corona rings are used together with the surge arresters.
You are welcome to send us the drawings for a quotation.
We can do custome made.
The corona rings are used together with the insulators.
You are welcome to send us the drawings for a quotation.
We can do custome made.
The HV DC generator can be used for the DC withstand voltage test of DC insulators, DC instrument transformers and HV DC insulated cables. It is designed for indoor use.
Learn more

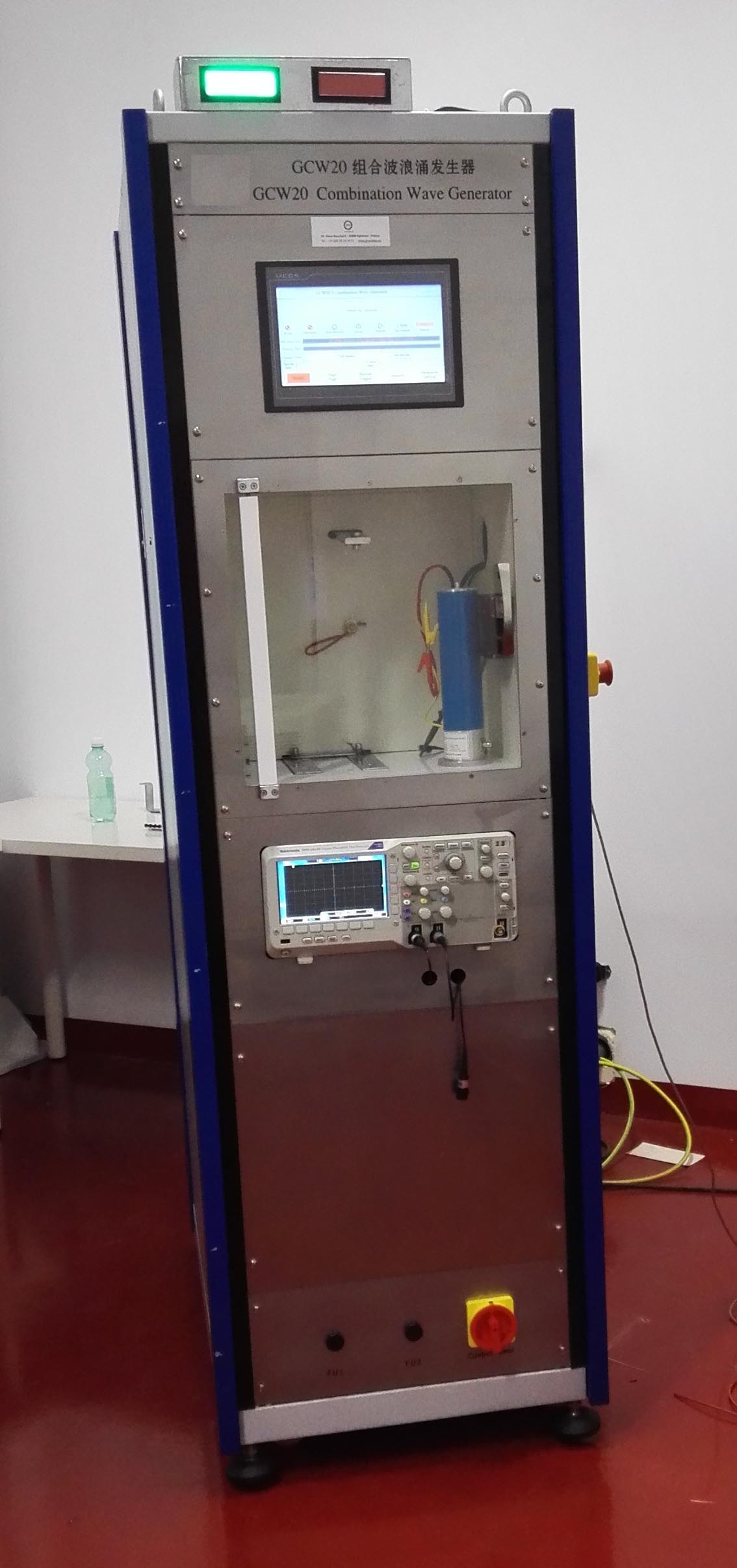

Combination wave generator can be used to generate impulse of exponential shapes to perform high energy surge tests.
The system can output combination wave (open circuit voltage 1.2/50μs & short circuit current 8/20μs).
With additional impulse modules, it can output 10/350μs and 8/20μs.

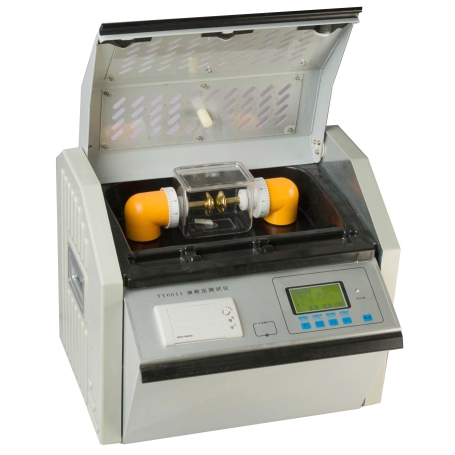

YY6611 oil dielectric tester is applicable for the oil dielectric test for the insulating liquids (oil) in transformers, reactors, bushings, switchgears and capacitors. The test device adopts perfect EMC design, which avoids the crash fault during test.
Learn more
The C type impulse current test systems with crowbar are sophisticatedly designed to generate impulse current of exponential shapes. The system can be designed in various ways for meeting customers’ requirements. The test system is applicable in testing of SPD, lightning protection components (MOV or air gap), lightning rod and aircraft device.
Learn more

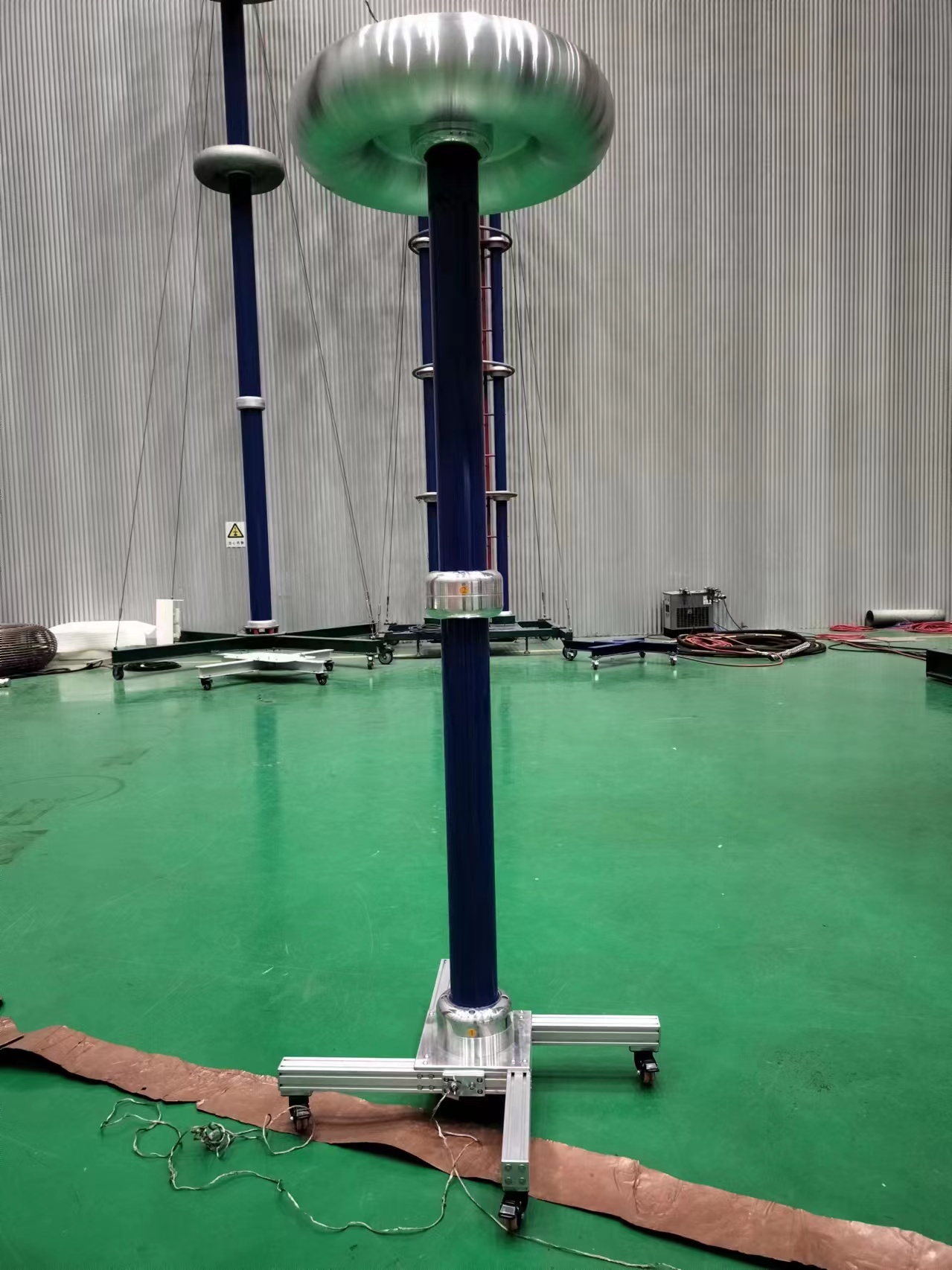

Universal voltage divider can be used for measurement of AC voltage, DC voltage ,lightning impulse and switching impulse.
Learn more
Voltage divider has the below different kinds:
1.impulse voltage divider for impulse measurement upto 4000kV;
2.resistive voltage divider for DC measurement;
3.capacitive voltage divider used for AC measurement;
4.capacitive and resistive voltage divider for AC and DC measurement
Partial discharge detector is suitable for the online partial discharge measurement of electrical apparatus, such as surge arresters, insulators, power transformers, generators, CT/VT, GIS, capacitors, power cables and switchgears.
Learn more

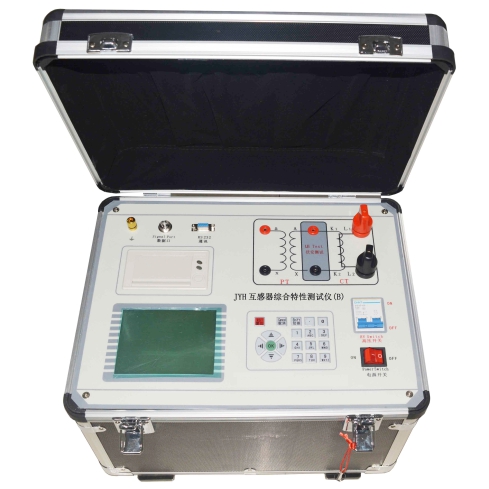

JYH-B instrument transformer characteristic tester can measure the turns ratio, polarity and volt-ampere characteristics of the current transformers and voltage transformers. It has large power regulating transformer, step-up transformer and current-up device inside. The tester is widely used in the routine test of voltage and current transformers.
Learn more
YR-20W type DC resistance meter is applicable to measure the DC resistance of power and distribution transformers, current transformers upto 35kV. It can also be used during temperature rise test. It is especially designed for the transformers whose resistances of HV winding and LV windings have a big difference.
Learn more

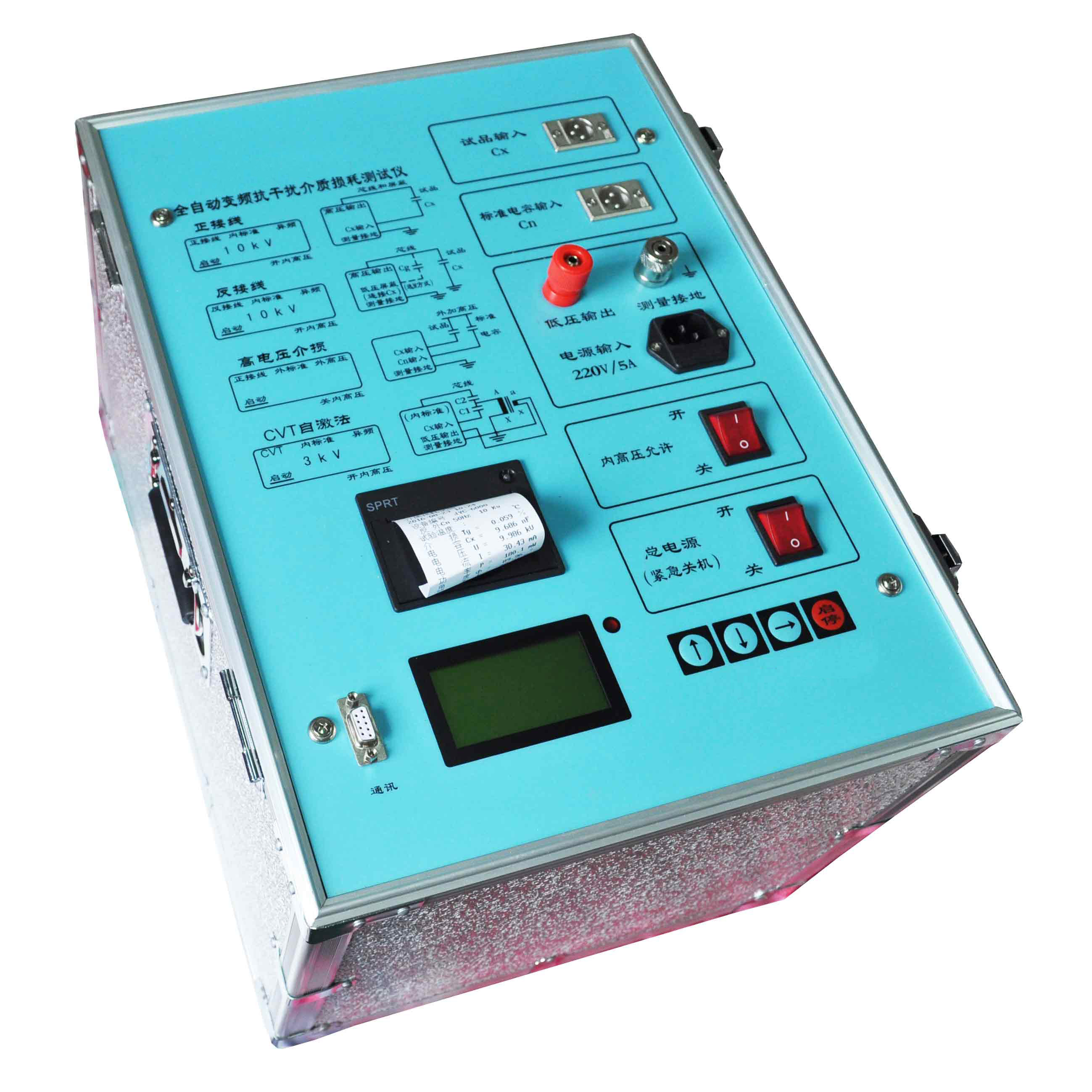

JXJS-10 automatic capacitance & tan delta tester has bridge, variable frequency converter, AC test transformer and standard capacitor inside. It has tunable frequency and anti-interference function.
Learn more

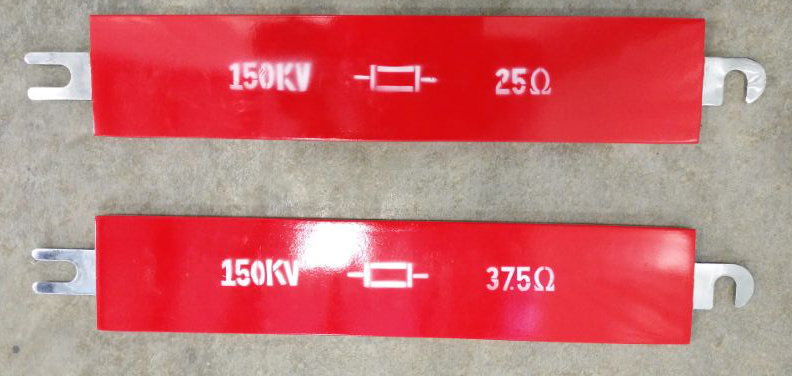

Wave shaping resistors for LI, SI and LIC of impulse voltage generators;
Wave shaping resistors for impulse current generators;
Charging resistors and protective resistors for AC test systems.
We can do custom made.

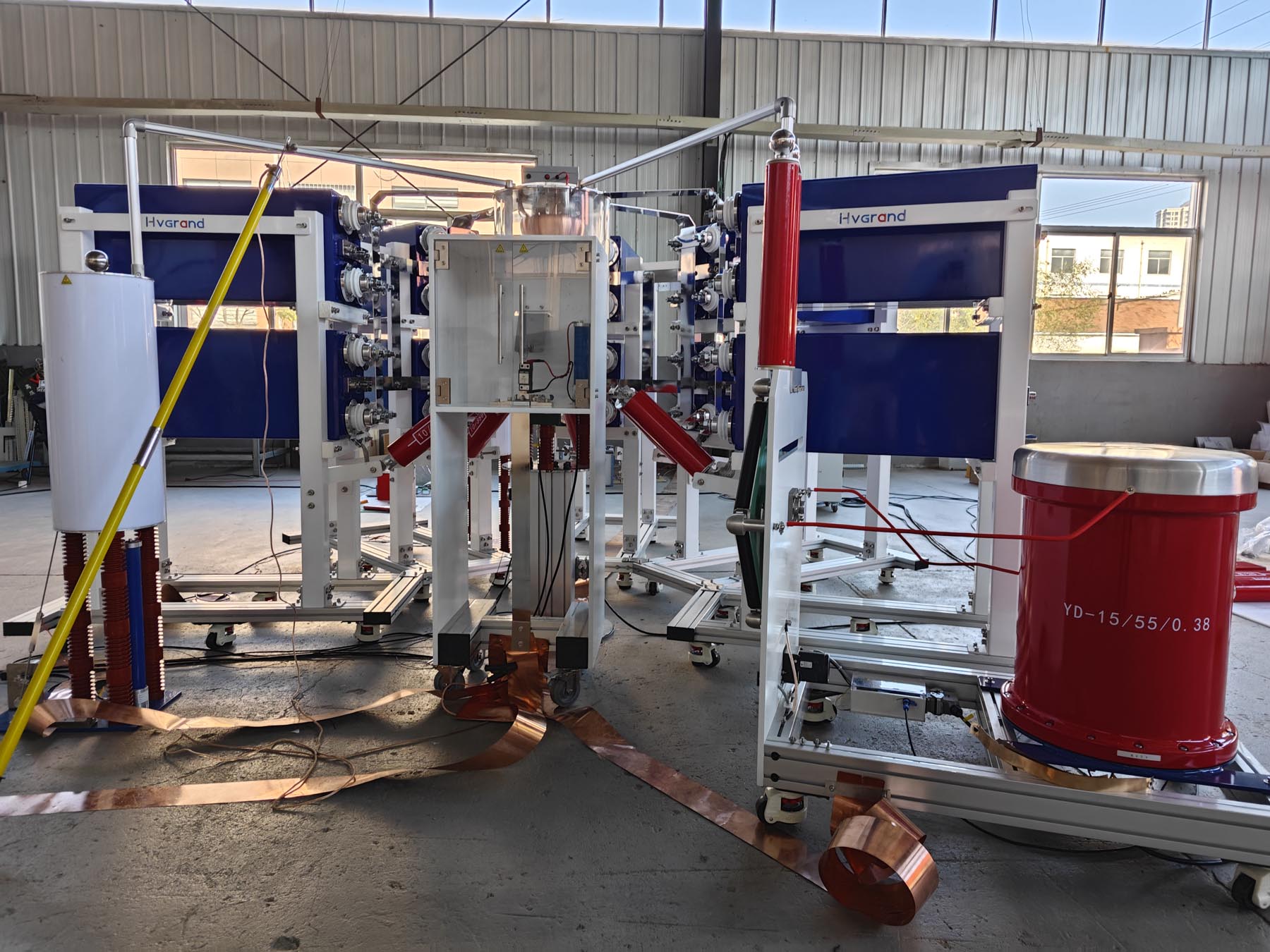

SP type impulse current test system can generate 8/20μs or 10/350μs impulse current waveforms. The systems can be used to test SPD, lightning rod and other lightning protection devices.
Learn more
The SXJB multiple chopping gap can be used for chopping of lightning impulse voltages between 20 kV and 3600 kV. The chopping can be realized at the front or at the tail of the impulse.
The SXIC5B surge generator can generate impulse current ( upto 5kA 10/350μs) for testing of Lightning Rod. The surge generator is designed for indoor use.
Learn more
AC resonant test systems with variable inductance and module type are used for factory testing of medium and high voltage cables, power transformers, bushings, high voltage capacitors, generators, arresters and high voltage accessories. They include stackable modules that can be used to test a wide range of products. The systems can be expandable to cover future test requirements that may require higher voltage and power levels.
Learn more

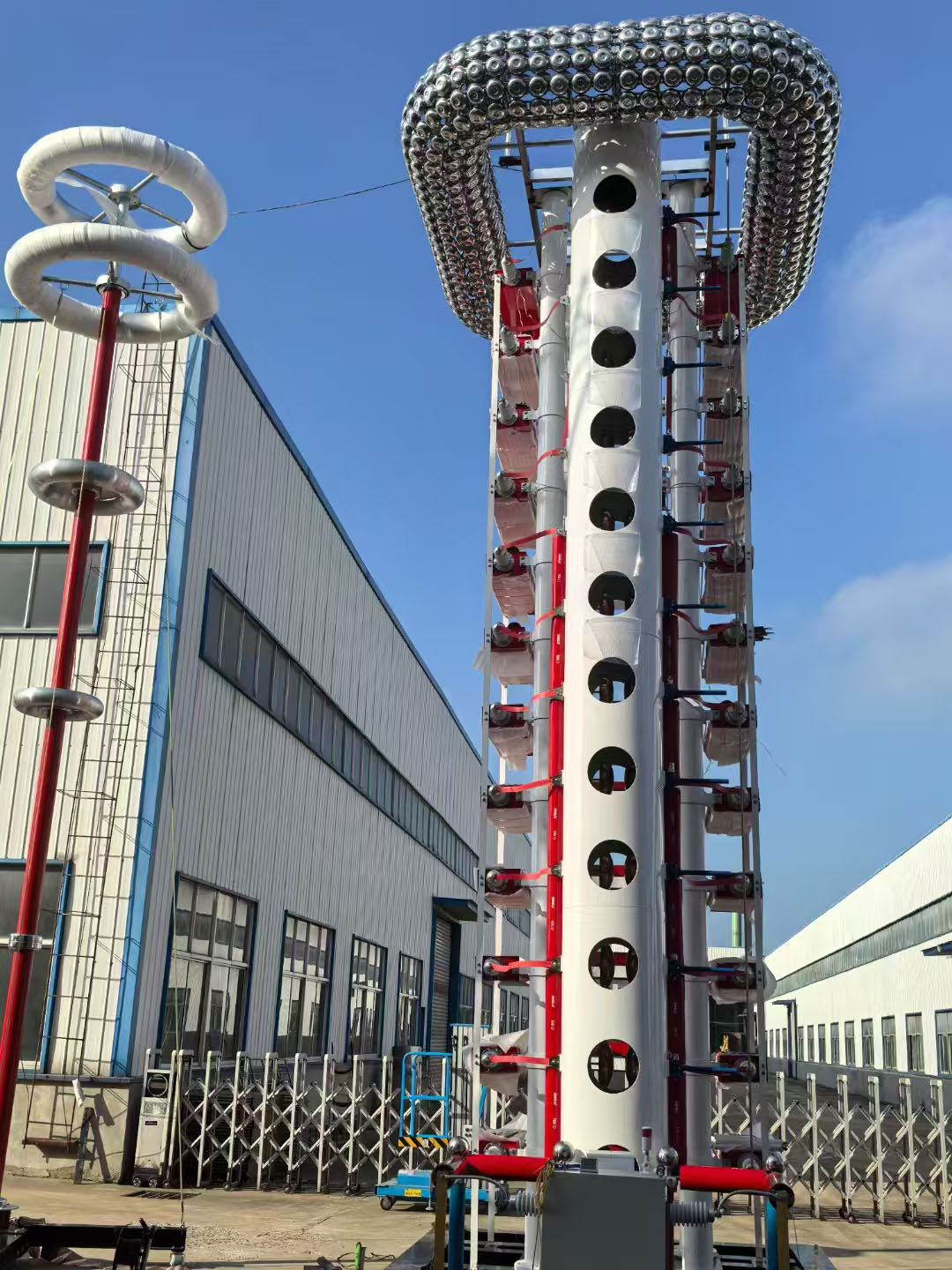

Impulse voltage test system can be used to generate impulse voltages simulating lightning impulse (1.2±30%/50±20%μs), chopped lightning impulse (chopped time between 2~6μs to test power transformers, instrument /voltage transformers and bushings), switching impulse (250±10%/2500±10% μs) and steep front waveforms (to test glass insulator, composite insulators or ceramic insulators) .
Learn more

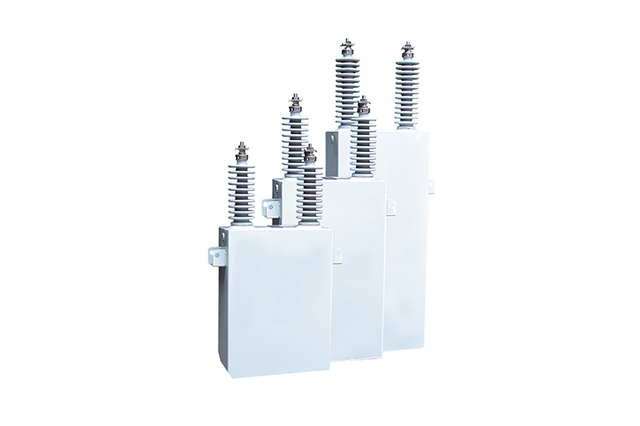

High voltage shunt capacitors are used to improve the power factor in the AC power system (50Hz or 60Hz) and increase the quality of the electric network. They are in full line with GB/T 11024.1 and DL/T 840 standards.
Learn more

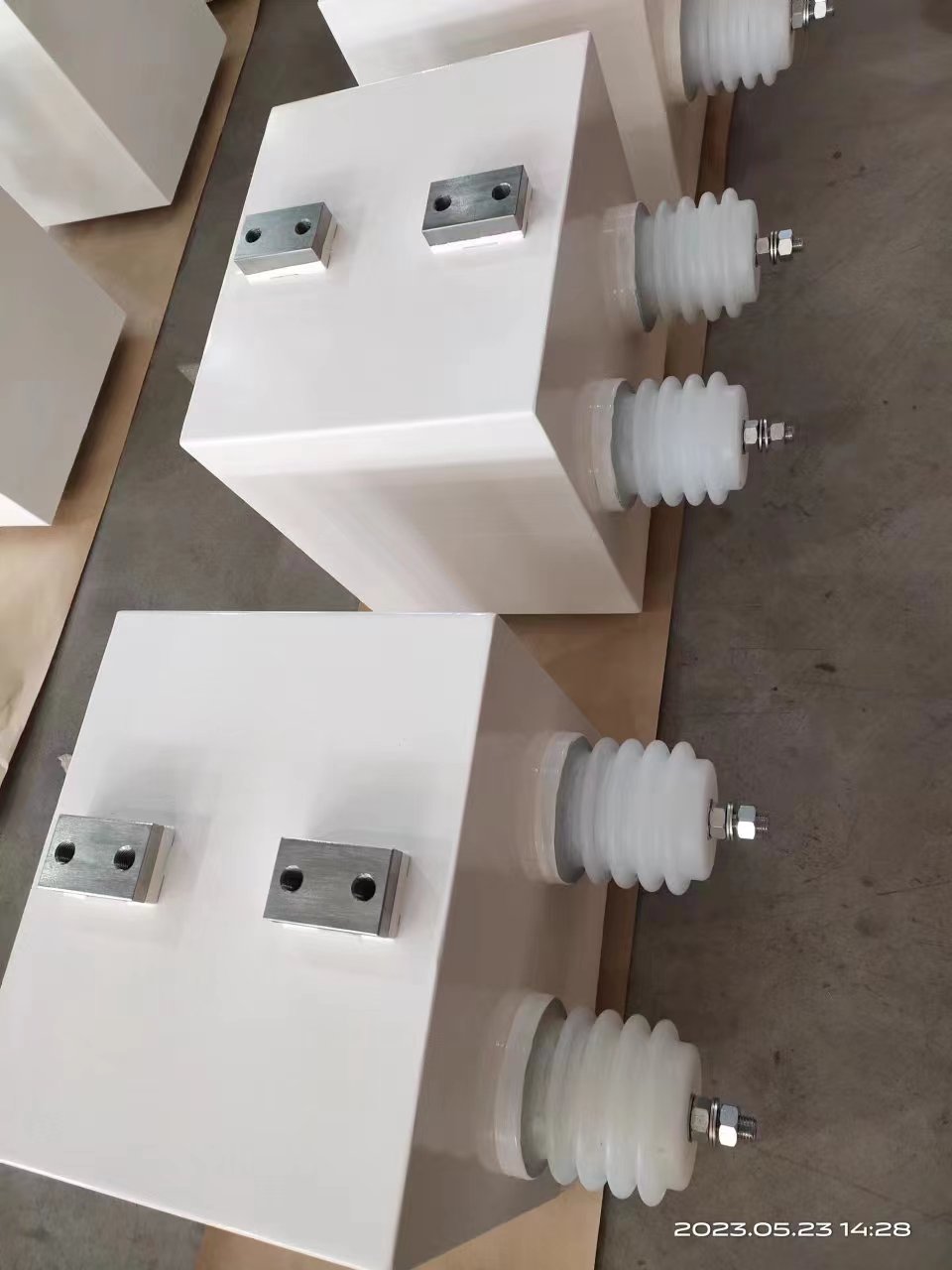

Impulse capacitors are widely used as the power energy for the high voltage and high current devices, such as impulse current generator, impulse voltage generator, long duration impulse current generator, repetition impulse generator, oscillation circuit test system, pulse power, etc.
Learn more

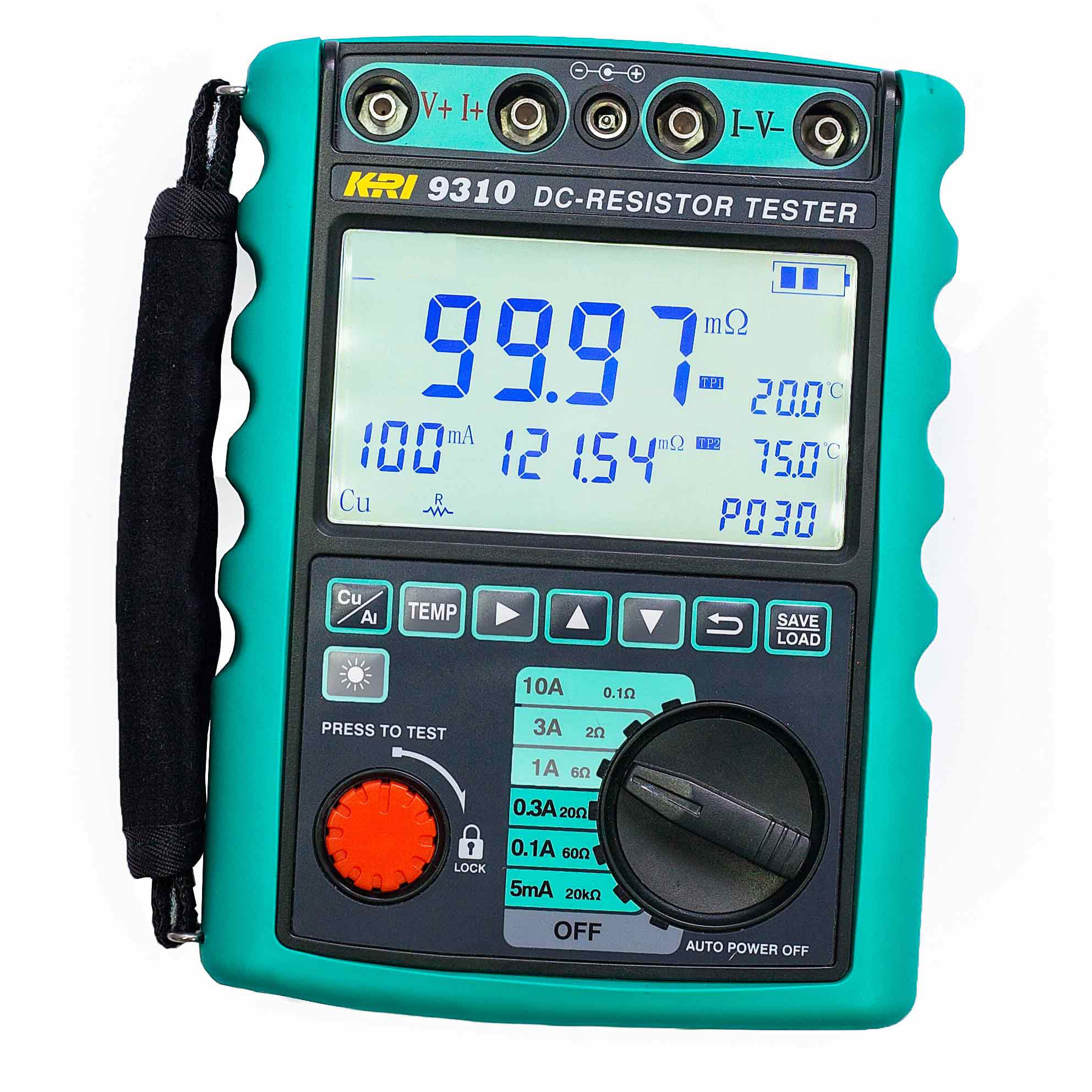

KRI9310 DC resistance tester is portable and automatic tester, which is applicable for the inductive test objects (such as distribution transformers, instrument transformers, reactors, etc) and the resistive test objects (such as contactors of switches, contactors of relays, wires, etc).
Learn more

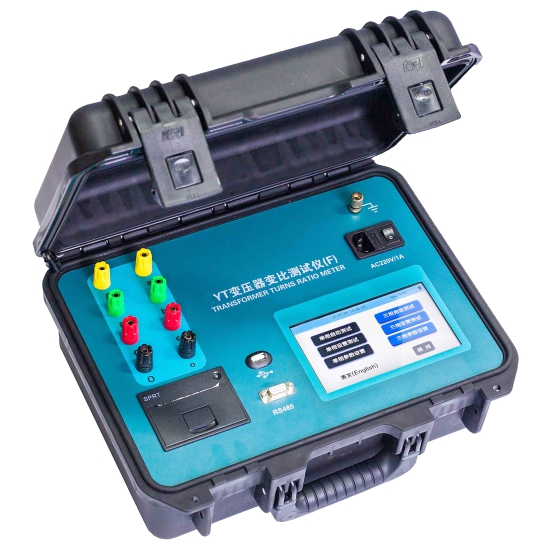

YT-F transformer turns ration meter is suitable for the turns ratio measurement of power transformers upto 1000kV, current transformers, voltage transformers and Z type transformers.
Learn more
YT-A transformer turns ration meter is suitable for the turns ratio measurement of power transformers upto 1000kV, current transformers, voltage transformers and Z type transformers. It has L-N voltage measurement, great convenience for wiring connection, fast test speed and high accuracy.
Learn more

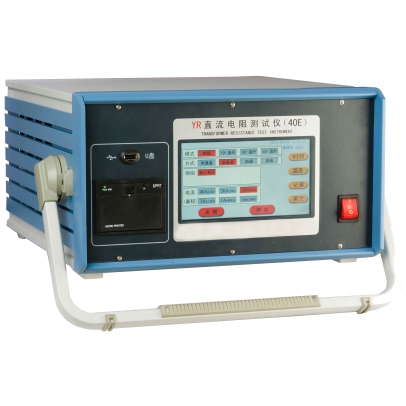

YR type DC resistance test instrument is applicable to measure the DC resistance of power and distribution transformers, current transformers with high resistance values.
Learn more
YRD and YRE type transformer resistance test instrument is applicable to measure the DC resistance of power and distribution transformers, current transformers upto 240MVA. It can also be used during temperature rise test.
Learn more

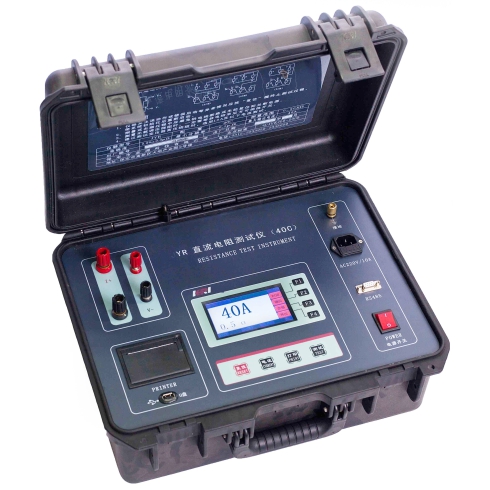

YRC type DC resistance test instrument is applicable to measure the DC resistance of power and distribution transformers, current transformers with rated voltage upto 110kV.
Learn more
AC resonant test system with variable inductance and metal tank type is used for factory testing of medium and high voltage cables, high voltage capacitors, generators, and motors. They use the resonance between the capacitive test object and the inductive HV reactor of the test system to generate a continuous sinusoidal high voltage.
Learn more
Partial discharge detector is suitable for the online partial discharge measurement of electrical apparatus, such as surge arresters, insulators, power transformers, generators, CT/VT, GIS, capacitors, power cables and switchgears. There are 3 models,JXFE-2003, JXFD-2010 and JXFD-2016.
Learn more

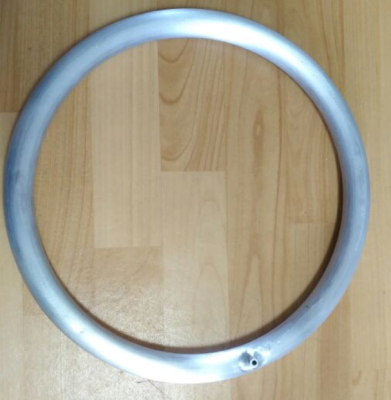

We can make different kinds of corona rings.
We can do custom made as per the customer's drawings.
AC test transformer is applicable for the AC voltage withstand test and partial discharge test of different insulation materials and electrical apparatus. They are widely used in the electrical apparatus manufacturers, electric power department, research institute and universities. The possibility of stacking several transformers allows reaching very high voltages by keeping a reasonable floor space.
Learn more

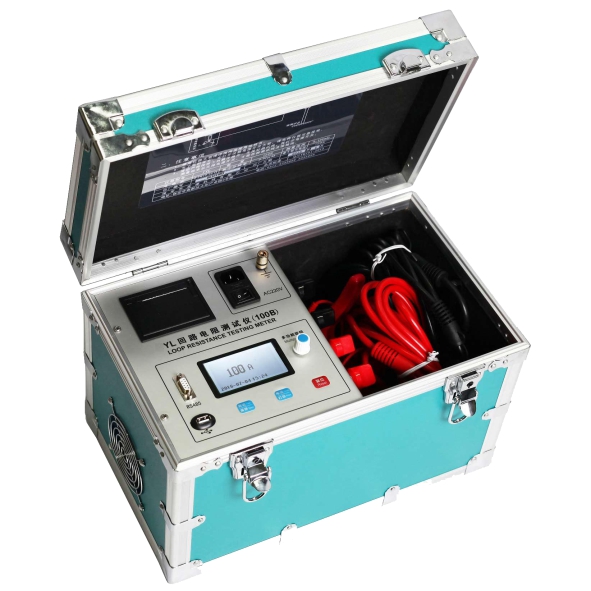

Loop resistance testing meter is suitable for the contact resistance measurement of HV switchgears and circuit breakers. It can also measure the primary resistance of the current transformers.
Learn more

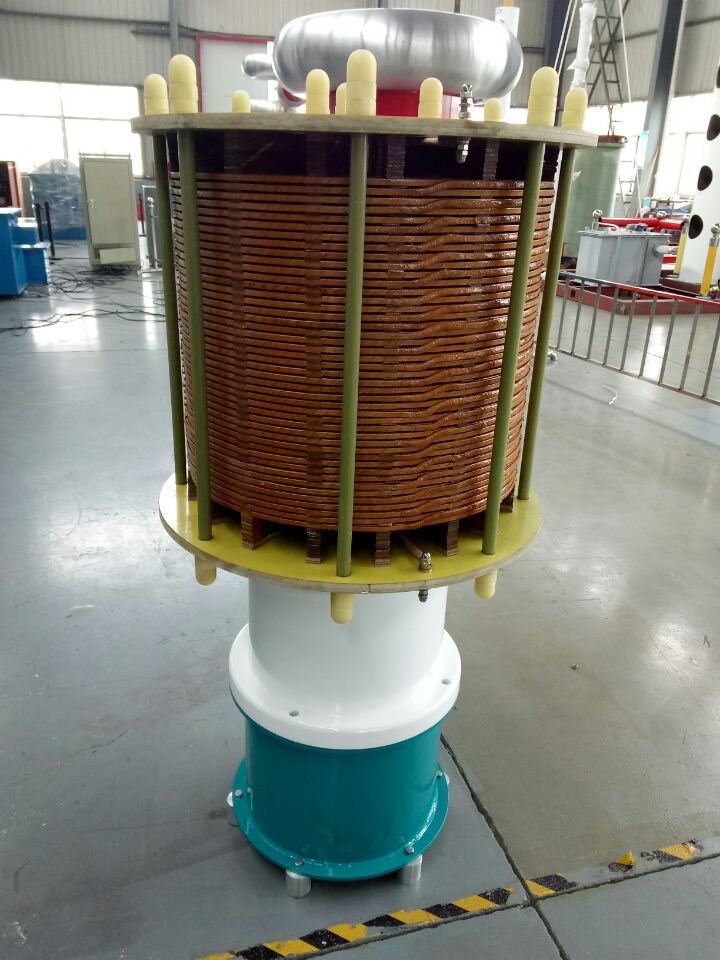

The compensation reactor can be used as compensation when testing MV capacitors. There is one test during which reactor (when 2 pcs JXBK-736.5/17 reactors are connected in series) is subjected to voltage lower than rated for 1.5 minutes and without interruption voltage is raised up to 54 kV in duration of 300 ms. This is repeated 60 times without interruption. Inductance must not change at 54 kV.
The compensation reactor can be used indoor.
SA type impulse current generator can generate different types lightning impulse current shapes such as 4/10μs, 8/20μs, 1＜20μs, 30/80μs, 60/100μs , long duration current according to IEC 60099-4. Modifications can be applied according to the request of our customers.
This type of test system is especially to test the metal oxide surge arresters.

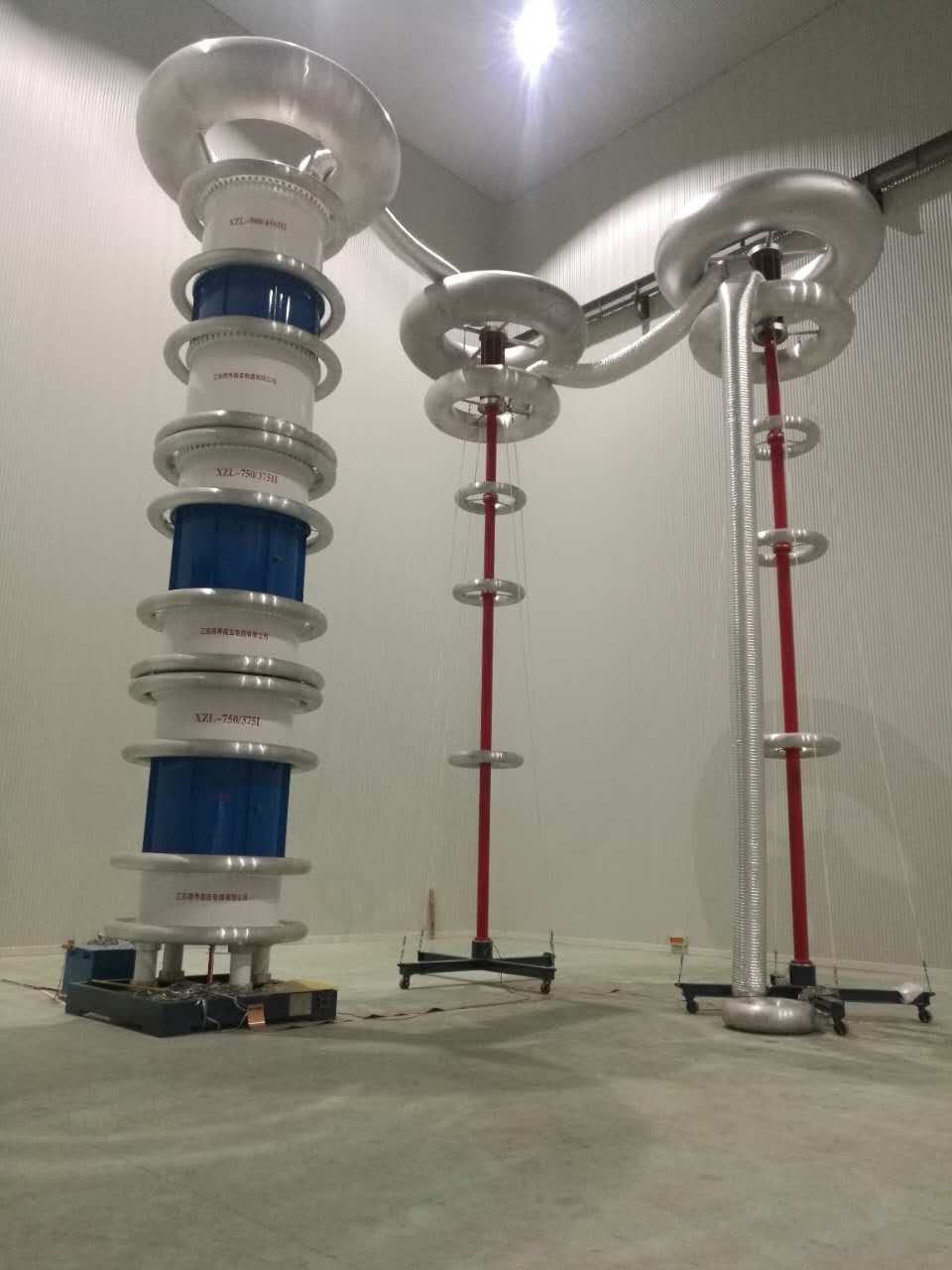

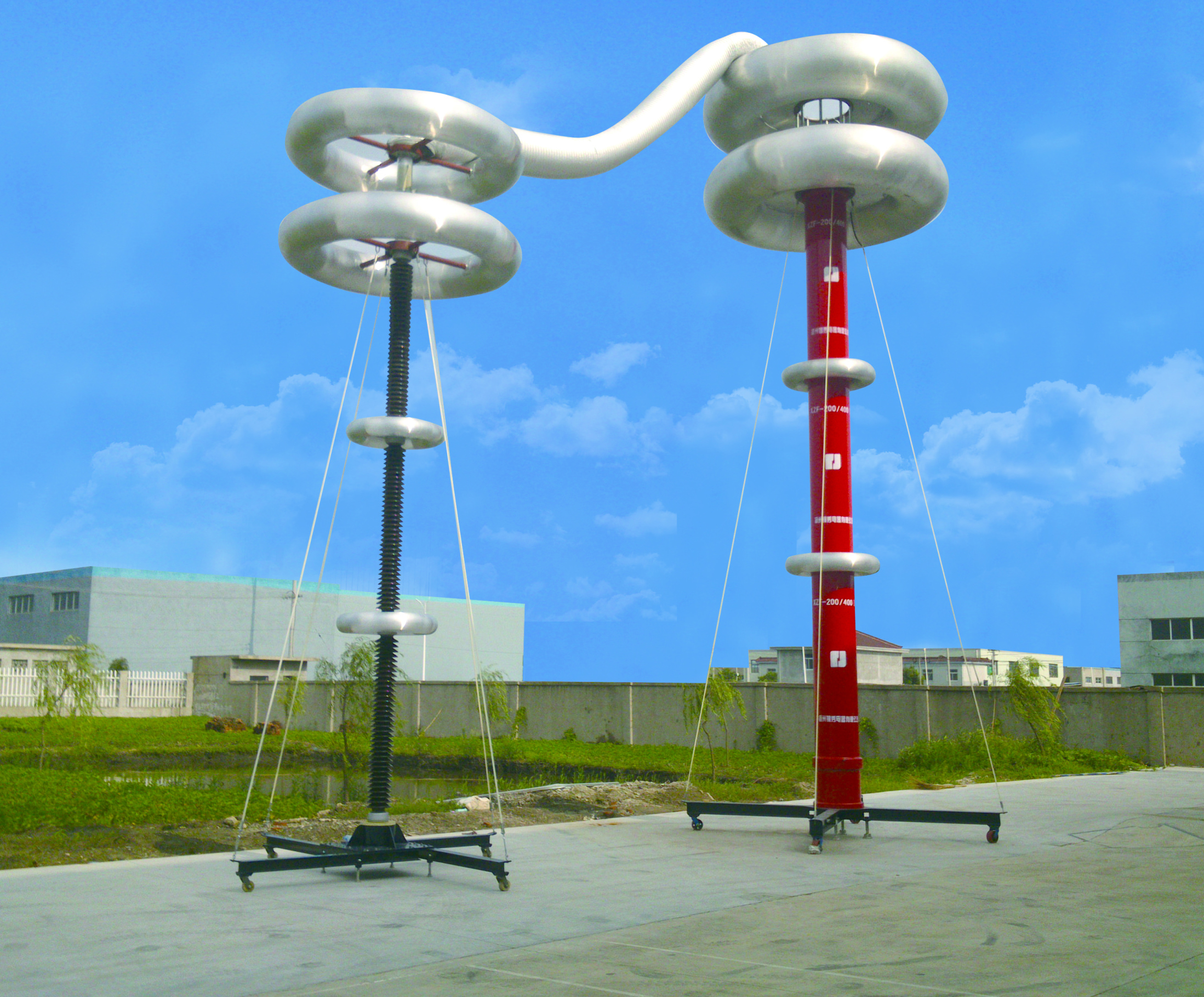

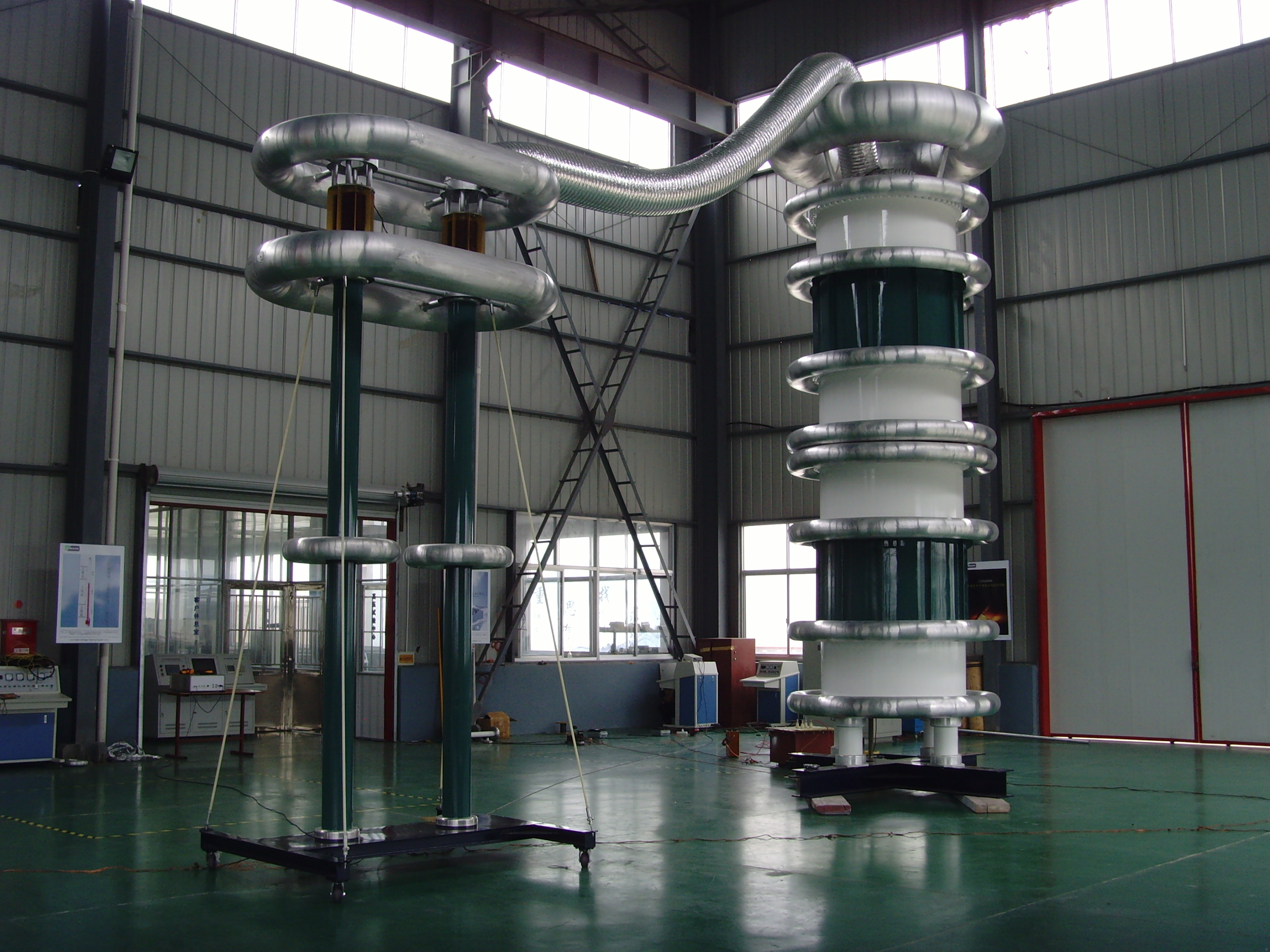

Variable frequency AC resonant test systems are mainly used for AC withstand voltage test of large capacitive test objects on site. The test objects include SF6 circuit breakers, GIS, power cables, tec.
With suitable tuning capacitor, the frequency range can be from 20Hz to 300Hz. The AC resonant test systems are applicable for partial discharge test of instrument transformers, coupling capacitors and metal oxide surge arresters with rated voltage under 1000kV.

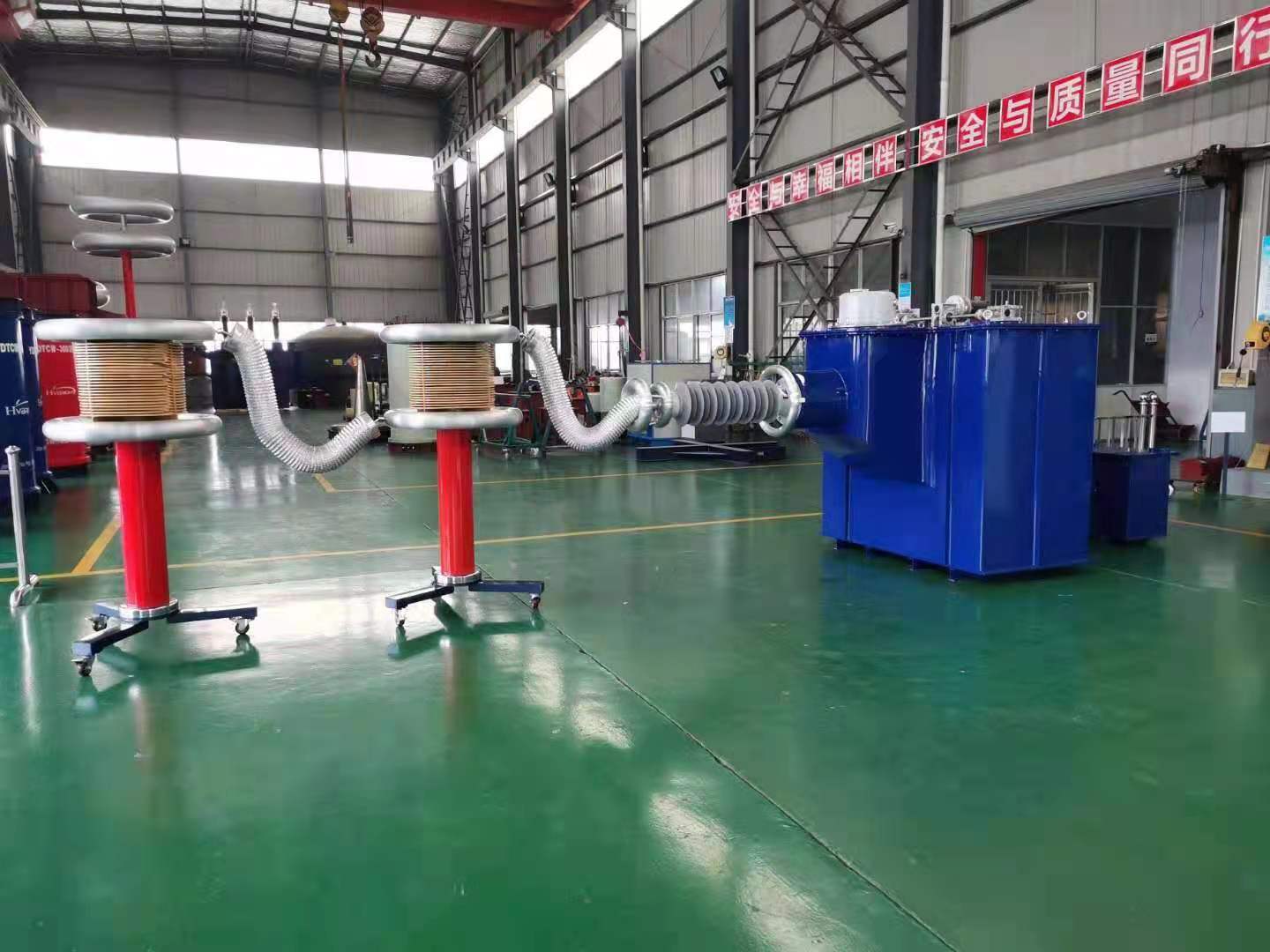

Series Resonant Test Systems with variable inductance and module type are used for factory testing of medium and high voltage cables, power transformers, bushings, high voltage capacitors, generators, arresters and high voltage accessories. They include stackable modules that can be used to test a wide range of products. The systems can be expandable to cover future test requirements that may require higher voltage and power levels.
Learn more

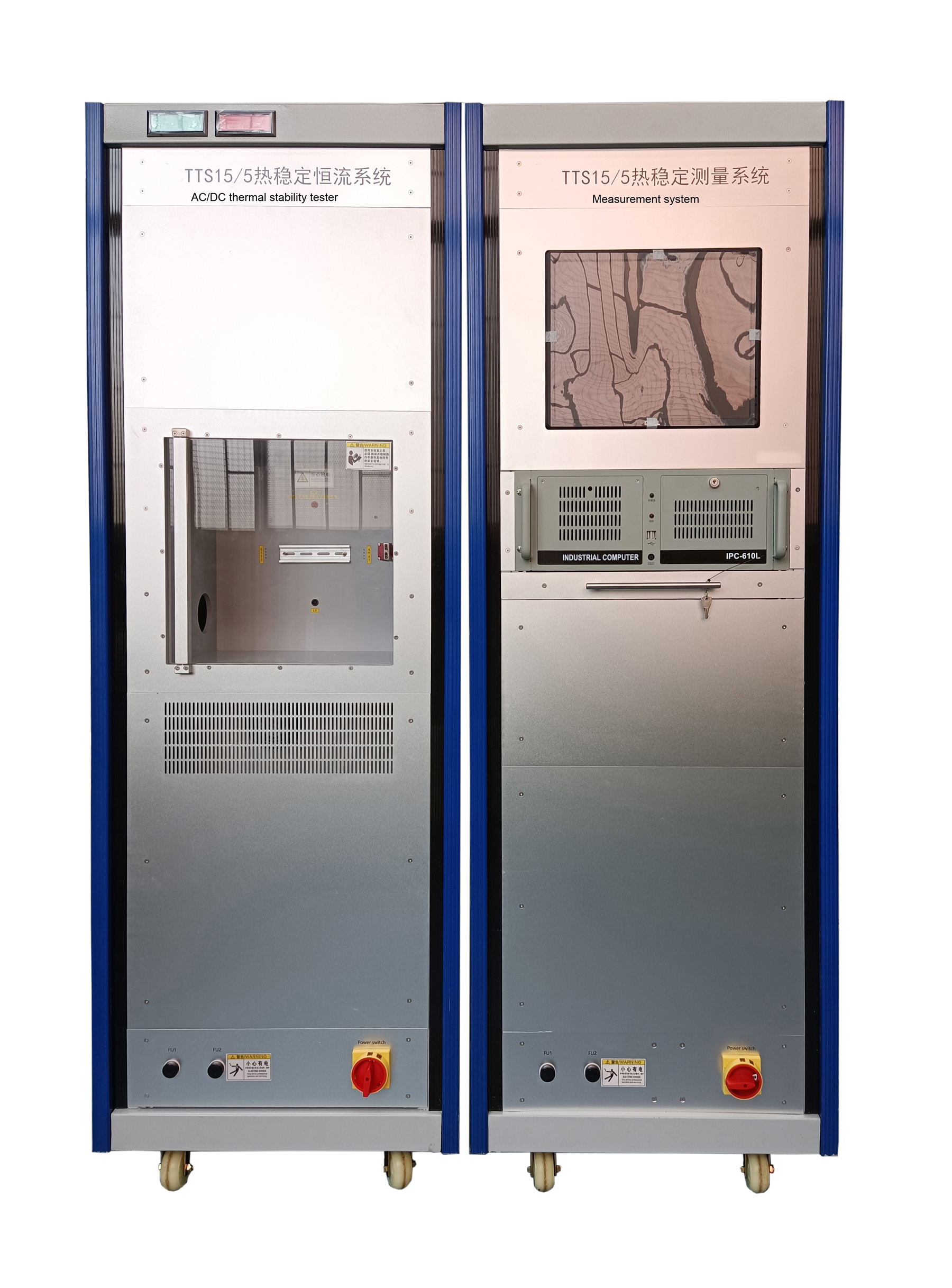

The thermal stability tester is applicable for the thermal stability test of SPDs. It is for indoor operation. One DC power source with a constant current between 2mA ~5A is applied on the SPD. The current through the SPD and the surface temperature of the SPD are continuously monitored to check if it reaches thermal equilibrium, and the disconnectors act.
Learn more
The thermal stability tester is applicable for the thermal stability test of SPDs. It is for indoor operation. One frequency AC power source with a constant current between 2mA ~5A is applied on the SPD. The current through the SPD and the surface temperature of the SPD are continuously monitored to check if it reaches thermal equilibrium, and the disconnectors act.
Learn more
Steep waveform generator units are used to generate the steep wave front waveform. They comprises of one steep waveform generator gap unit and resistive voltage divider.
The gap unit consists of sphere gaps, transmission gear, capacitors and corona rings, which are mounted on the rectangular metal base.

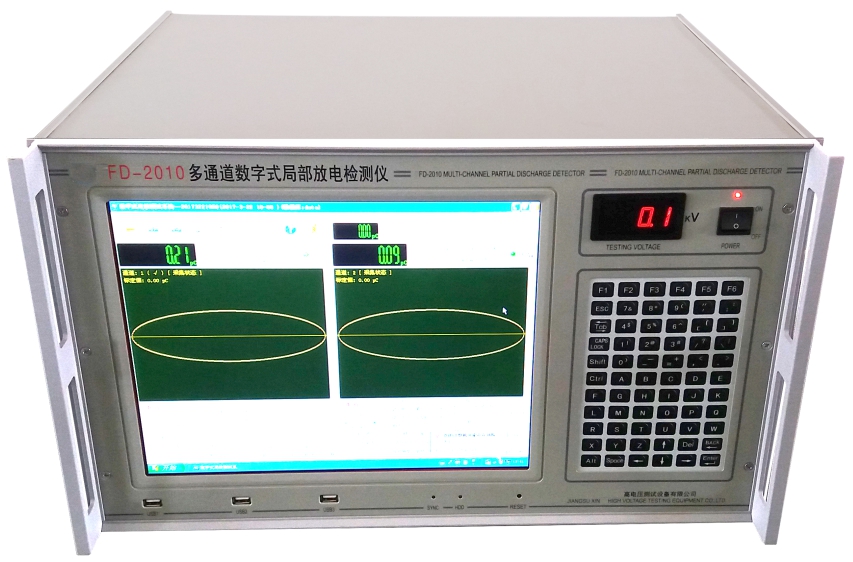

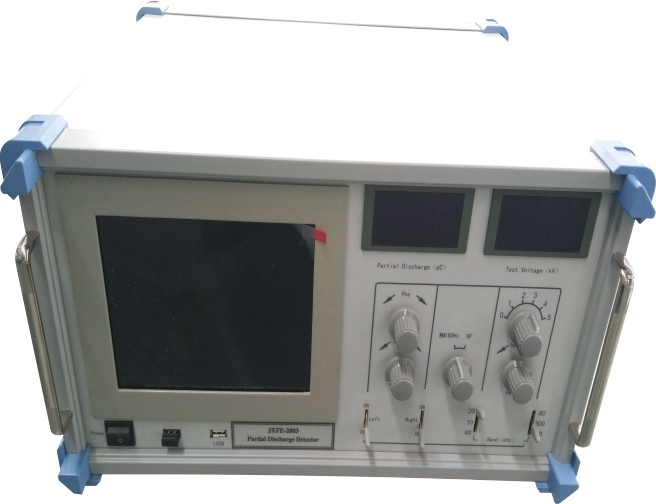

Partial discharge detector is suitable for the online partial discharge measurement of electrical apparatus, such as surge arresters, insulators, power transformers, generators, CT/VT, GIS, capacitors, power cables and switchgears. There are 3 models,JXFE-2003, JXFD-2010 and JXFD-2010S.
Technical Data of JXFD-2010S
1) Measuring Channels: 4 Channels;
2) The capacitance range of the test object 6pF--250μF;
3) Test precision: 0.1pC;
4) Sample precision: 12bit;Sample Rate : 20M/S;
5) Time window: You can select the phase dynamically, amplify the time window dynamically.
6) Filter frequency band:
(a) On low frequency 3dB, fL: 10, 20, 40 KHz optional;
(b) On high frequency 3dB, fH: 80, 200, 300 KHz optional, fL and fH can be freely combined to form any filter band .
7) Data store and display. It can print and generate standard test report.
8) AC220V, Frequency 50Hz, Power 300W.
Sanmen Shixuan Electric Co.,Ltd.(HVGrand is our logo) is a professional provider of high voltage test facilities and test solutions for the testing of MV & HV electrical products, such as insulators, bushings, transformers, cables, surge arresters, SPD, switchgears, disconnectors, etc. Our factory covers an area of 6000 square meters, we have 45 staff with professional staff and senior engineers included.
