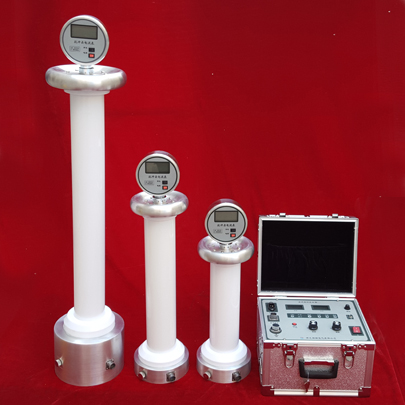

HV DC Generator upto 1600kV

The HV DC generator can be used for the DC withstand voltage test of DC insulators, DC instrument transformers and HV DC insulated cables. It is designed for indoor use.

Product Brochure Send an Inquiry

Additional Product Information

Features & Benefits

Automatic polarity change;
Ripple factor less than 3%;
Automatic control or manual control for selection;

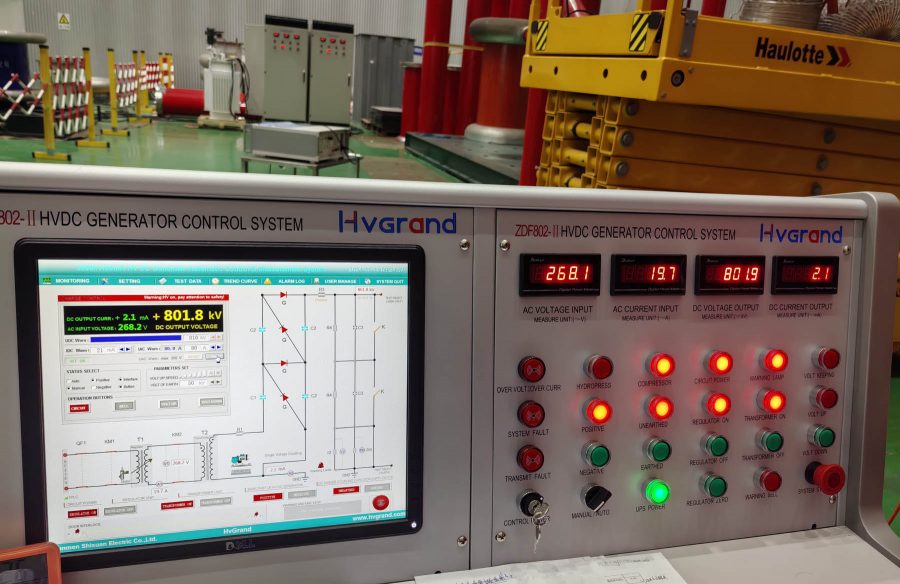

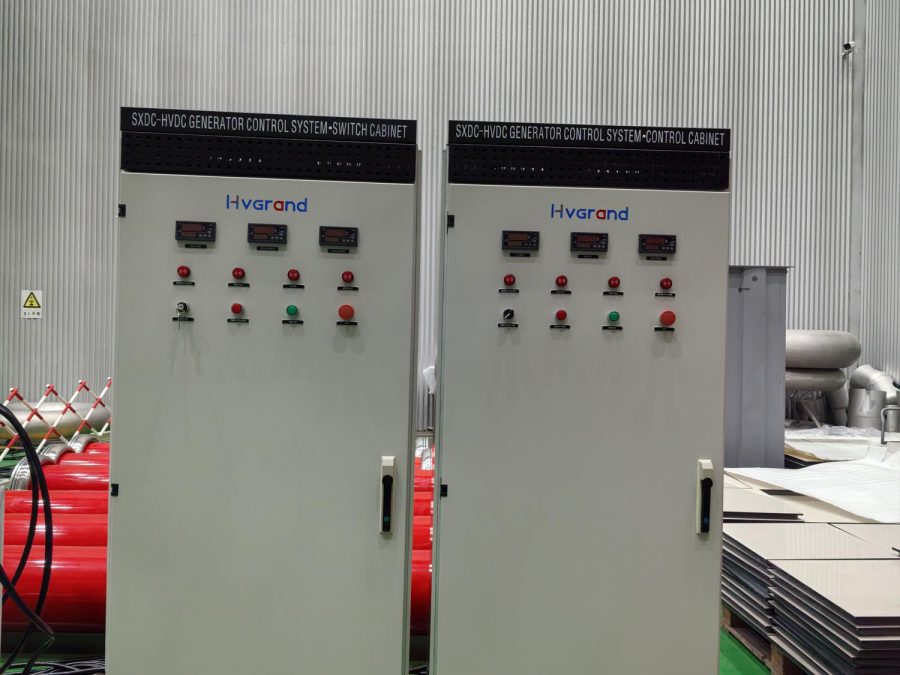

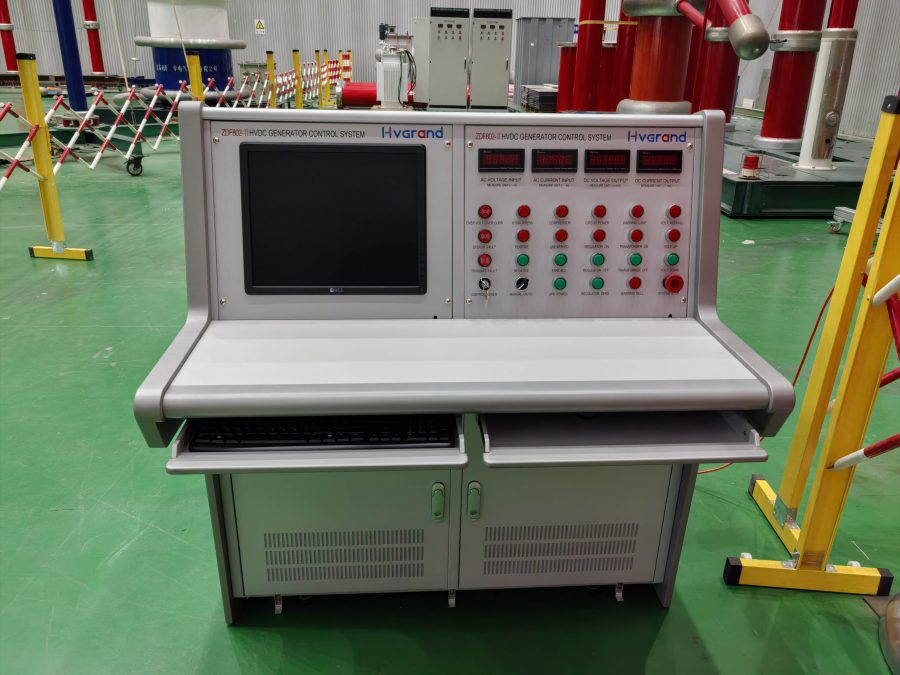

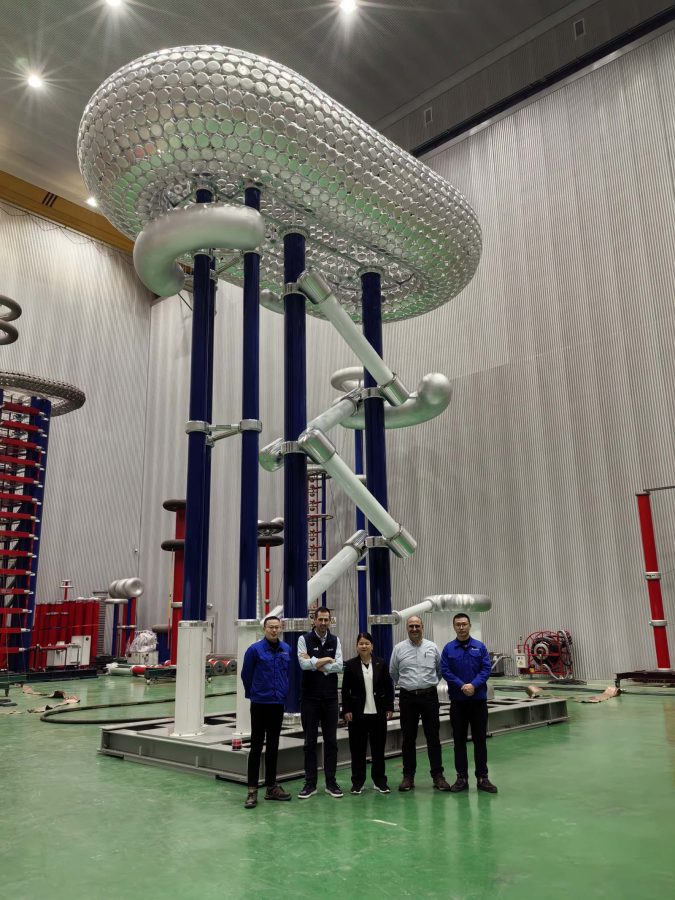

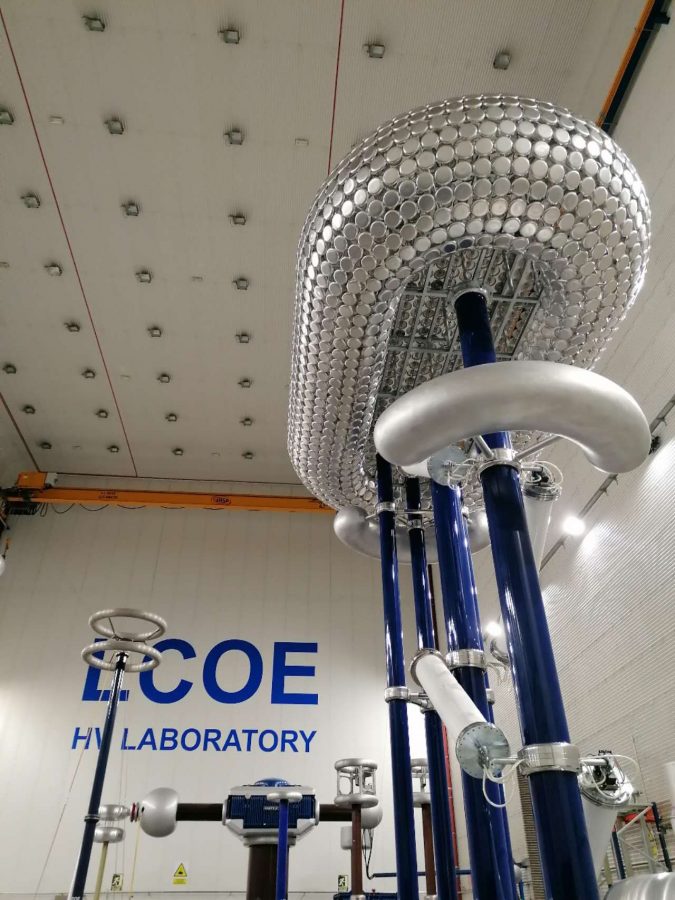

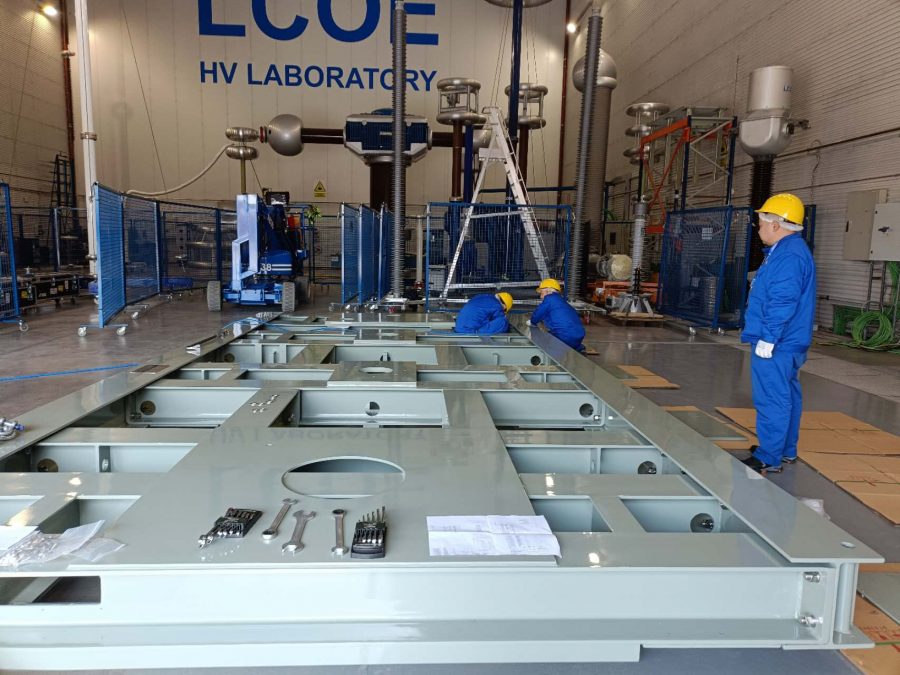

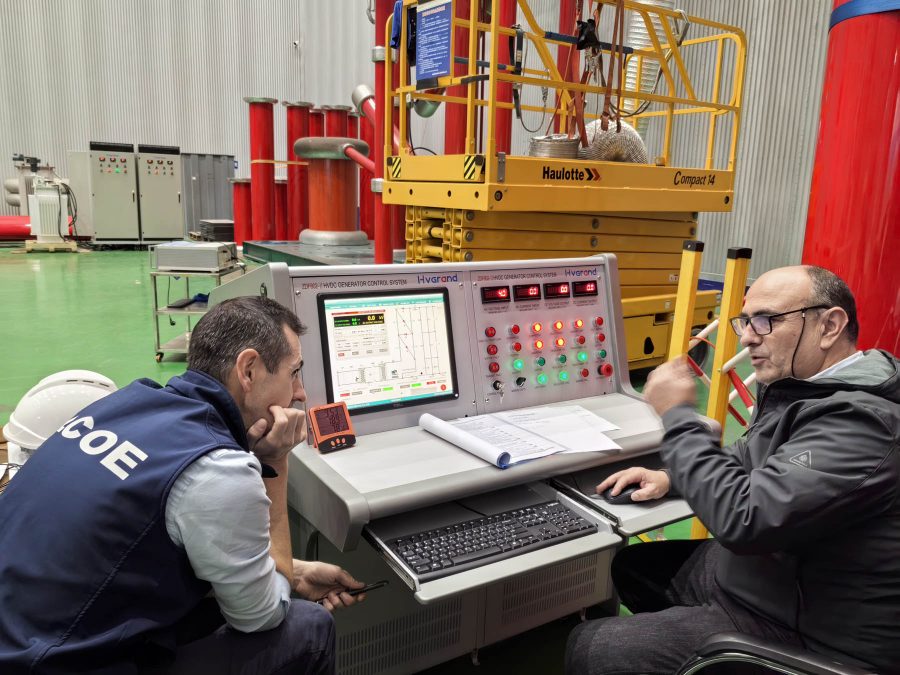

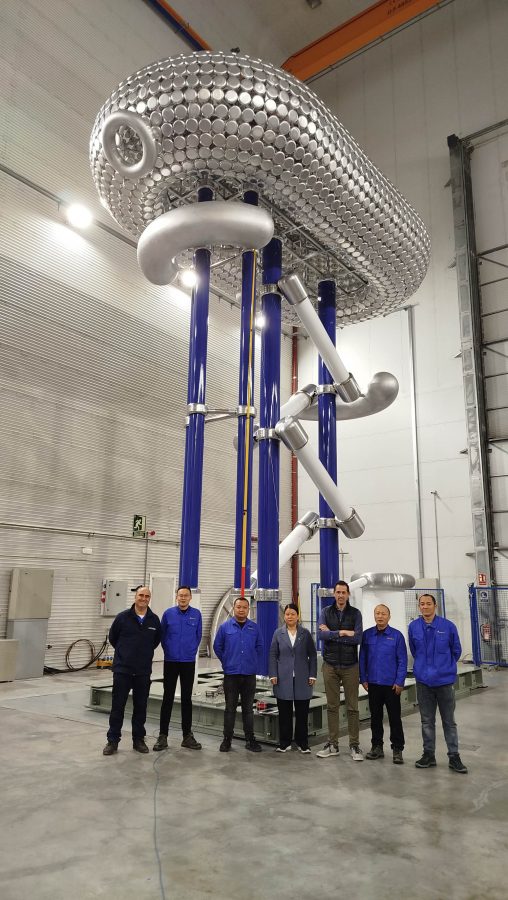

For our 800kV 20mA HV DC generator, it has the below features:

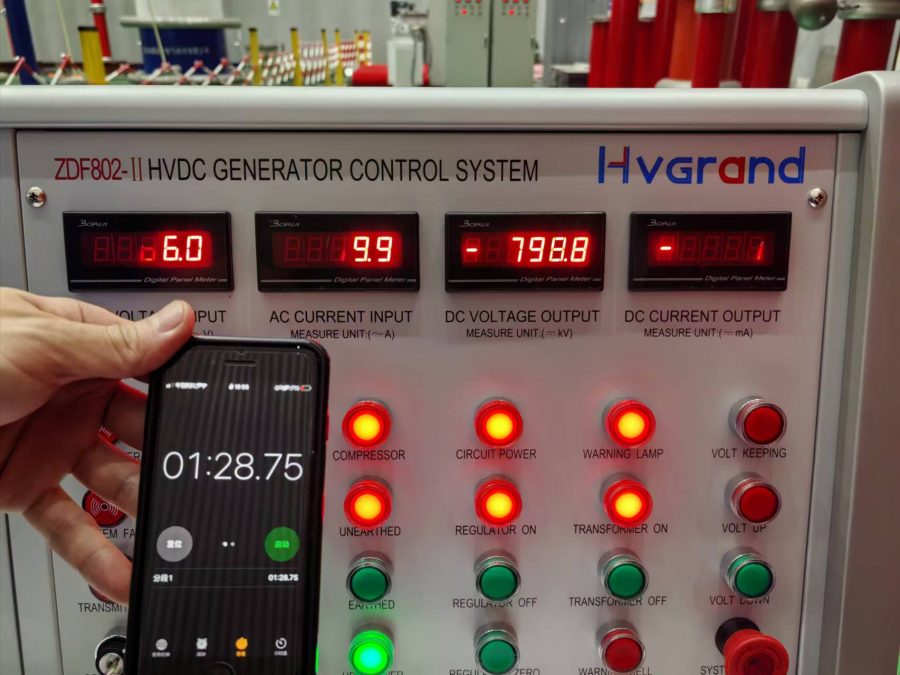

(1)The polarity reversal time @ rated voltage can reach less than 90 seconds.

(2) And our ripple factor is less than 0.6% @800kV.

(3) The max PD value is less than 300PC @±800kV.

Applications

Surge arresters;
HV DC Cable and cable accessories;
HV converters
DC insulators
DC instrument transformers
Other insulation materials.

Technical Parameters

Model No.	Ripple Factor	Maximum Output Voltage	Output Current
Model No.	Ripple Factor	(kV)	(mA)
SXDC-50/10	≤3%	50	10
SXDC-120/15	≤3%	120	15
SXDC-200/10	≤3%	200	10
SXDC-250/10	≤3%	250	10
SXDC-300/10	≤3%	300	10
SXDC-400/10	≤3%	400	10
SXDC-800/20	≤3%	800	20
SXDC-1600/50	≤3%	1600	50
SXDC-2000/500	≤3%	2000	500
We can do custom made.

Standards

IEC60060

Projects

300kV HV DC Generator

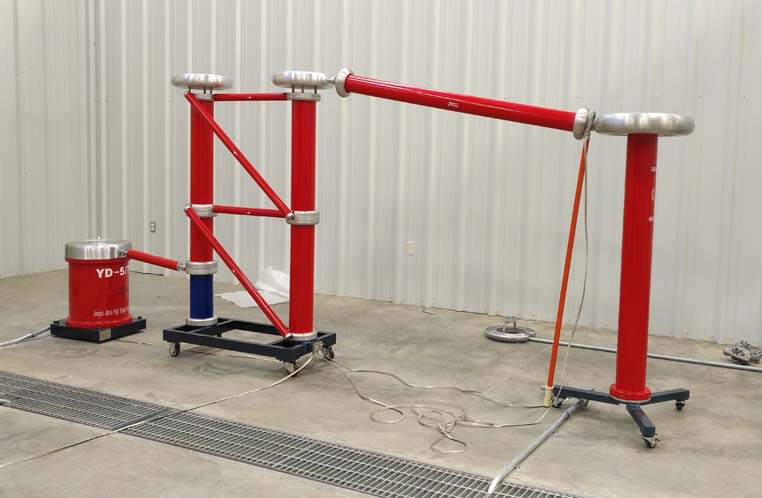

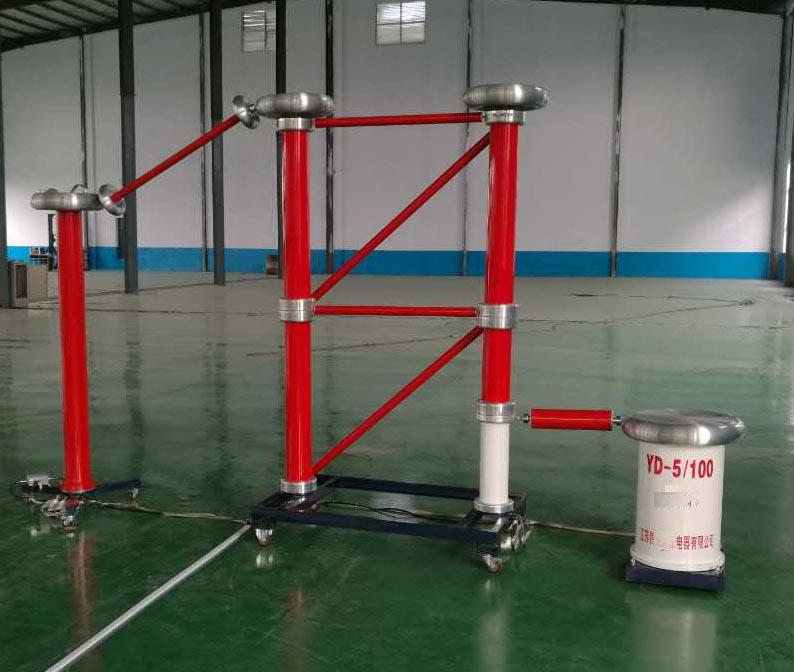

400kV 10mA DC Generator
100kV/ 60kV 5mA DC
_cuva
_cuva
_cuva
_cuva
