Colorful touch panel for easy operation, user friendly and remote control;
Considerate safety measures;
Abnormal charging protection;
Automatic diagnosis of multiple faults such as charging overcurrent, overvoltage, and self discharge lamp;
Fiber optic remote communication control;
Program controlled DC high-voltage charging

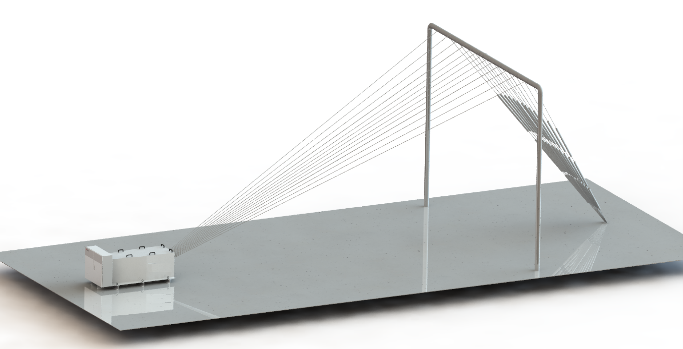

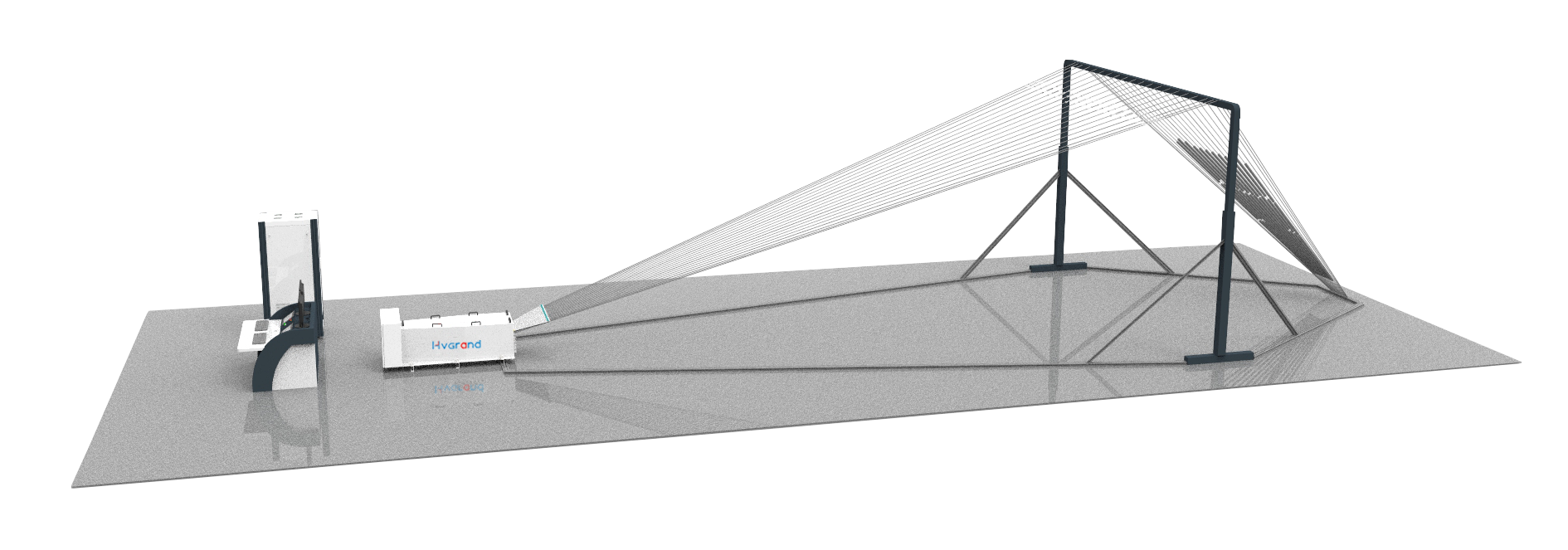

This system is mainly used for conducting nuclear electromagnetic pulse sensitivity tests on electronic systems.
It can apply a maximum pulse electric field of 50kV/m to the test object to test its reliability in a strong pulse electric field environment.
| Model | EMP100 | EMP240 | EMP300 | EMP400 | EMP800 |
| Charging voltage | 120kV | 240kV | 300kV | 400kV | 800kV |
| HV impulse power | 120kV | 240kV | 300kV | 400kV | 800kV |
| TEM antenna | 1.8m cone shaped transmission;
Line simulator |
3.6m cone shaped transmission;
Line simulator |
5m cone shaped transmission;
Line simulator |
6m cone shaped transmission;
Line simulator |
12m cone shaped transmission;
Line simulator |
| Control system | Remote control | Automatic control with iMCS2000, remote control | Automatic control with iMCS2000, remote control | Automatic control with iMCS2000, remote control | Automatic control with iMCS2000, remote control |
| Dimension (LWH) | 8*2.5*1.8m | 15*4.5*3.6m | 20*7*5m | 24*8*6m | 48*15*12m |
| Test area (LWH) | 1.1* 1.2*0.9m | 3* 2.5* 1.1m | 3*3*1.6m | 4*4*2m | 8*8*4m |
| Installation dimension (LWH) | 9*4.5*3m | 20*7*6m | 25*10*10m | 28×12×10m | 60*20*18m |
| Disassembly and installation | Rapid disassembly and installation | / | / | / | |
| Rise time | 2.3ns±0.5ns | ||||
| Pulse width | 23ns±5ns | ||||
| Electric field strength | 50kV/m | ||||
| Transmission line impedance | 120Ω | ||||
| Charging time | 10-999s adjustable | ||||
| Interval time | 14-999s adjustable | ||||
| Power supply | AC 220V±10%，50Hz，20A | ||||
| Accessories for optional | |||||
| Pulse decoupling device | Model: DN-450T-COM;
Operation voltage: AC450V/DC300V,3 phase 5 lines; Power frequency: DC-400Hz; Decoupling wave: 2.3/23ns; Load operating current: max. 50A; Used for EUT online testing to prevent any impact on the power supply |
||||
| Voltage probe | Model: RVP-200;
Non inductive resistive voltage divider, measure voltage wave upto 200kV; Measure the wave of 2.3/23ns |
||||
| Ground electric field probe | Model: EFP-100
Using D-DOT measurement technology, combined with integrator, it can measure 2.3/23ns electric field waveform up to 100kV/m; Measurement range: 5kV/m-100kV/m |
||||
| Fiber optic electric field probe | Model: FFP-100;
Using the original waveform probe; Directly cooperate with analog fiber optic signal transmission; The transmitting and receiving ends are included; Measurement range: 5kV/m-100kV/m |
||||
| Measurement system | iMAS3000 measurement software with a laptop;
Communicate with oscilloscope (Tektronix, Rigol and Agilent brand); Support GPIB, TCPIP and USB communication interfaces; Automatically measure and analyze waveform parameters, Output test reports |
||||
| Oscilloscope | Tektronix, Rigol and Agilent brand | ||||
