Impulse Voltage Dividers

Impulse voltage divider is used to measure high voltage full and tail chopped lightning and full switching impulses. Provided with an adequate additional secondary part, it can also be used for alternating voltage measurements.

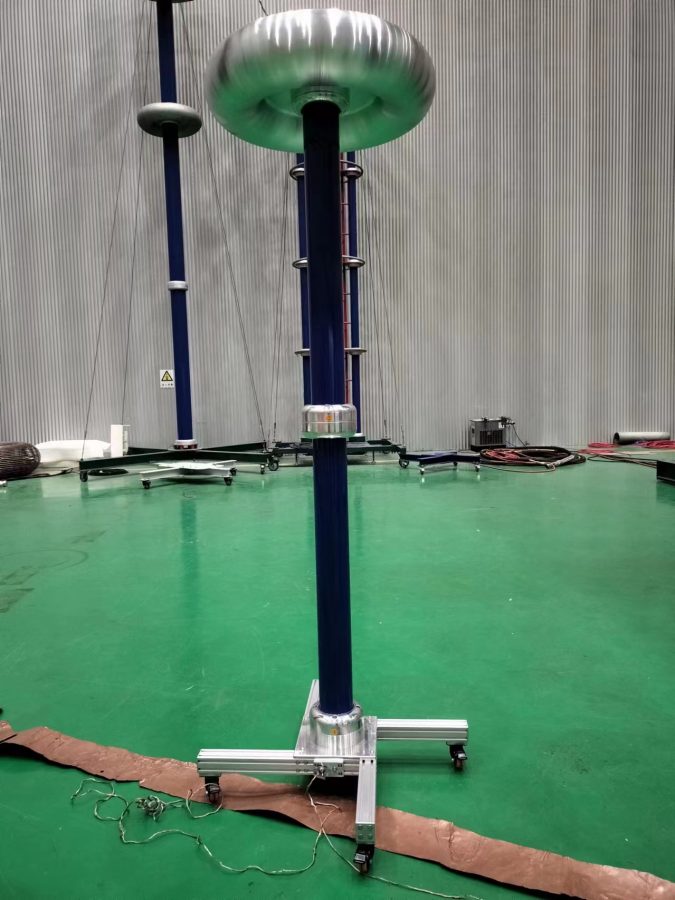

It has wheels at the bottom for easy movement and corona rings at the top.

Product Brochure Send an Inquiry

Additional Product Information

Features & Benefits

It has wheels at the bottom for easy movement and corona rings at the top.

Measuring accuracy:3%;

Applications

Low damped-capacitive impulse voltage divider is used to measure high voltage full and tail chopped lightning and full switching impulses. Provided with an adequate additional secondary part, it can also be used for alternating voltage measurements.

Technical Parameters

Model No	Rated Voltage L.I. 1.2/50μs kV	Rated Voltage S.I. 250/2500μs kV	Rated Capacitance pF
SXVD-400/300	300	240	300~600
SXVD-400/400	400	320
SXVD-400/600	600	480
SXVD-300/800	800	640
SXVD-300/900	900	720
SXVD-300/1200	1200	960
SXVD-300/1600	1600	1280	300~1000
SXVD-300/1800	1800	1440
SXVD-300/2400	2400	1920
SXVD-400/3000	3000	2400
SXVD-400/3600	3600	2880

Standards

IEC60060

Projects

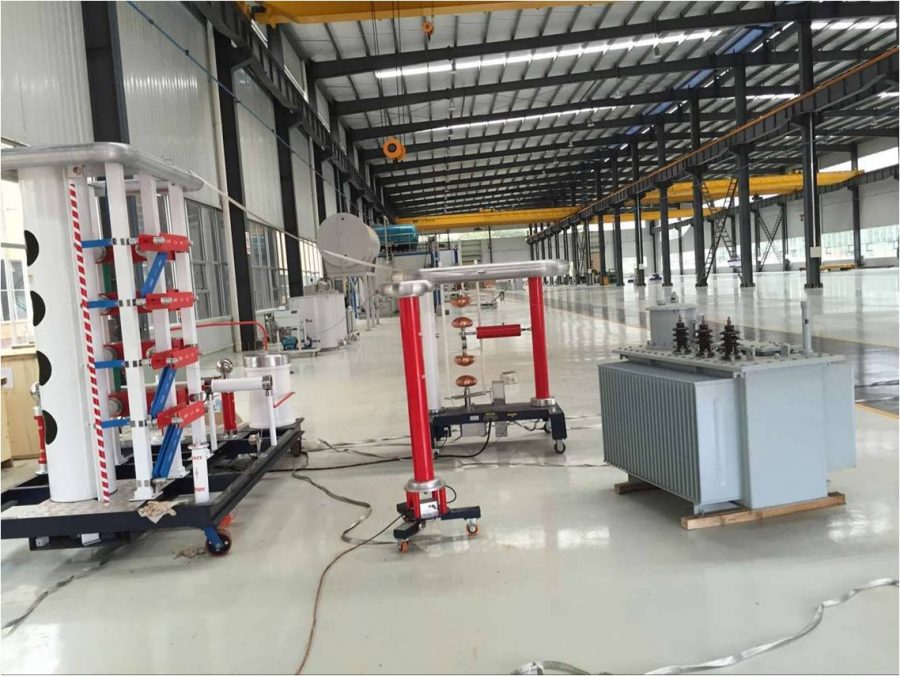

used in impulse voltage generator

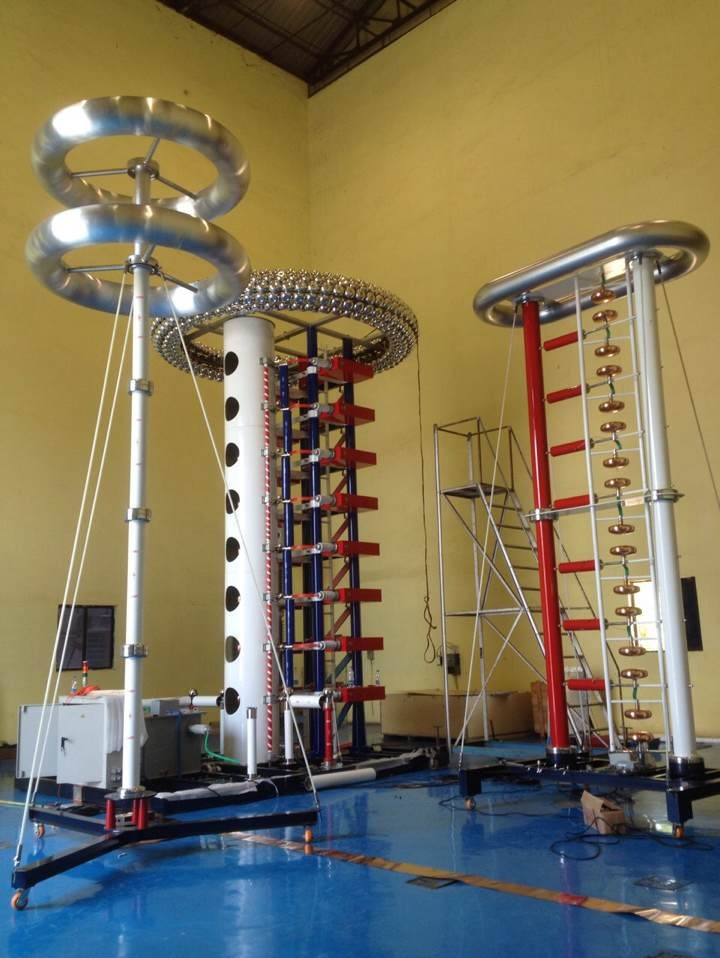

1600kV Divider with 1600kV Impulse Generator
