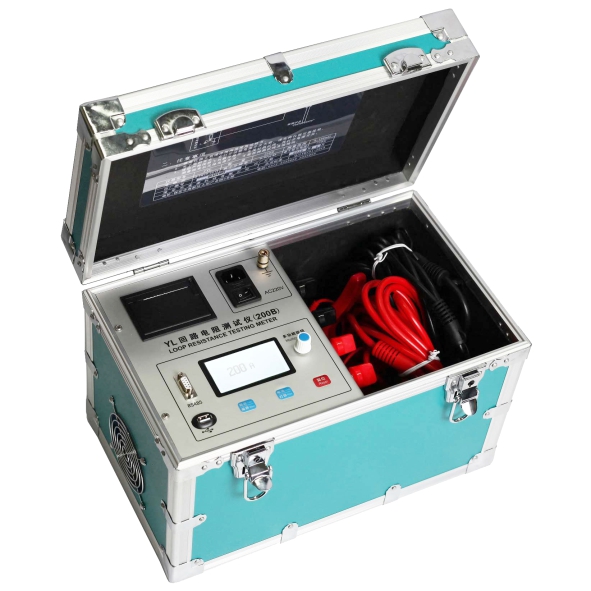

Loop Resistance Testing Meter

Loop resistance testing meter is suitable for the contact resistance measurement of HV switchgears and circuit breakers. It can also measure the primary resistance of the current transformers.

Additional Product Information

Features & Benefits
  1. Large current test range;
  2. High output voltage, test wires are convenient to take onsite;
  3. Test current comes from high precision constant current power, no need for manual regulation;
  4. Four-pole wiring method to avoid the test wire resistance’s affection on the test results;
  5. Over heat protection for long time continuous operation;
  6. RS485 communication port, remote control is possible if it works with external upper computer control software.
Applications

Loop resistance testing meter is suitable for the contact resistance measurement of HV switchgears and circuit breakers. It can also measure the primary resistance of the current transformers.

Technical Parameters
Displayed digits 4-1/2 digits
Model YL-200B YL-100B
Output current 200A 100A 50A 100A 50A
Measure range 0~20mΩ 0~50mΩ 0~100mΩ 0~50mΩ 0~100mΩ
Accuracy 0.5%±0.2μΩ
Min. Resolution 0.01μΩ
Output voltage DC 10V
Power supply AC220V±10%, 50Hz±1Hz
Temperature -20~40℃
Relative humidity ≤80% RH, no condensing
Dimension 350mm(L)*230mm(W)*260mm (H)
Net weight 8.7kgs
