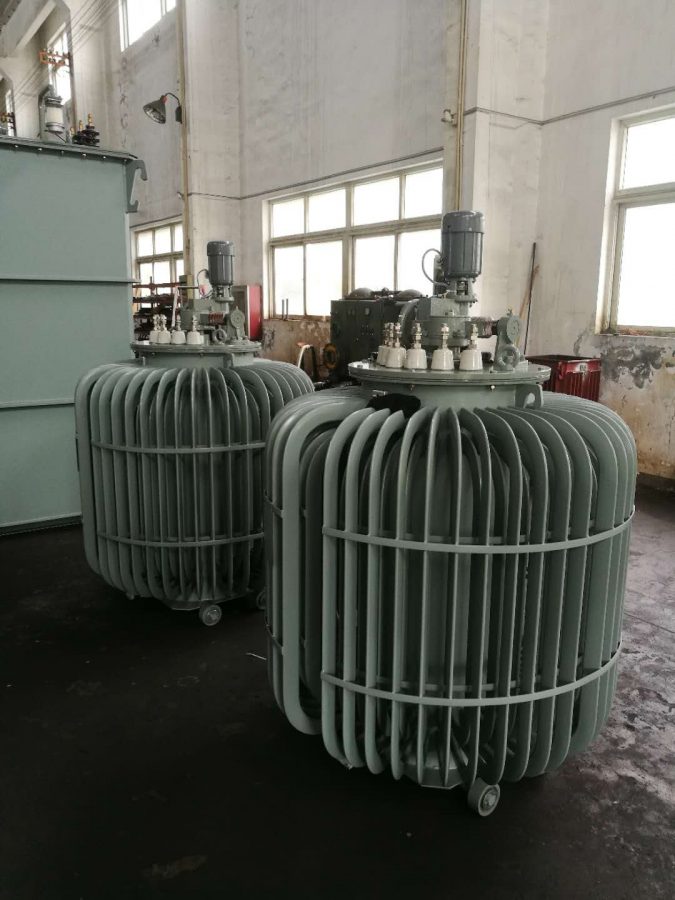

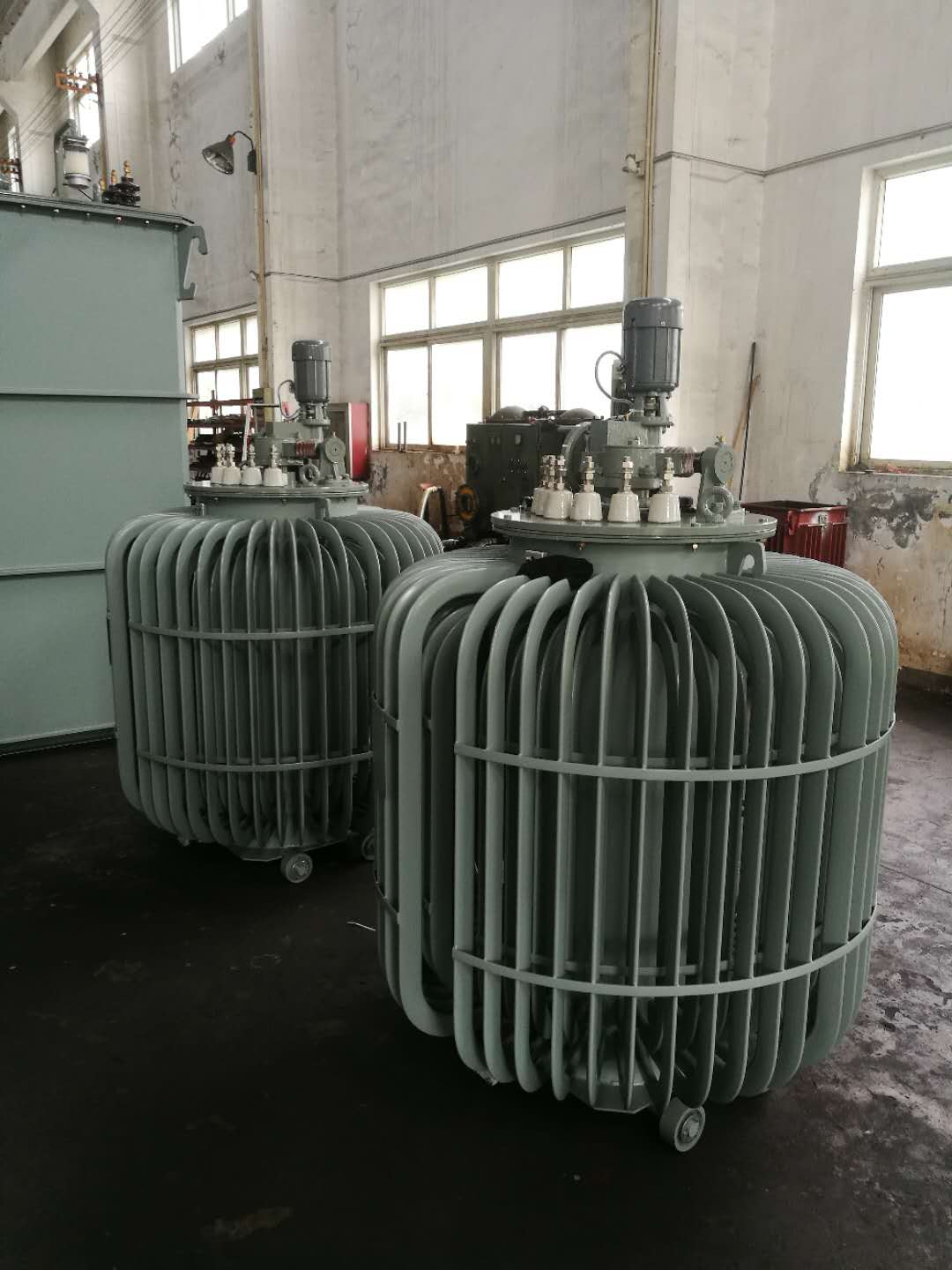

Regulating Transformer

This series of regulating transformer can regulate the output voltage steplessly, smoothly and continuously on load. As it has low impedance voltage and low waveform distortion ratio, it is widely used as the power source for the testing of motors, transformers and switchgears. In addition, it can also be used as one component of rectifier device, DC speed adjustment, communication device and medical instrument.

Additional Product Information

Features & Benefits

1) Low no-load current and total loss;

2) Low waveform distortion ratio;

3) Low impedance voltage;

4) Excellent linearity of voltage regulation;

5) Good stability to withstand instant load

Applications

This series of regulating transformer can regulate the output voltage steplessly, smoothly and continuously on load. As it has low impedance voltage and low waveform distortion ratio, it is widely used as the power source for the testing of motors, transformers and switchgears. In addition, it can also be used as one component of rectifier device, DC speed adjustment, communication device and medical instrument.

Technical Parameters
Model No. Cooling Method Rated Power

(kVA)

Phase Rated Input Voltage (V) Rated Output Voltage

(V)

JTDZ-xxx ONAN 25~315 1 220 0~250
40~500 380 0~430 or

0~650

JTSZ-xxx 40~1600 3 380 0~430 or

~650

JTSZ-xxx/3.3 200~2500 380,3300, 6000 or 10000 0~3300
JTSZ-xxx/6.3 200~2500 0~6300
JTSZ-xxx/10.5 200~2500 0~10500
JTDGZ-xxx DRY 16~200 1 220 0~250
380 0~430 or

0~650

JTSGZ-xxx 25~315 3 380 0~430 or

0~650
