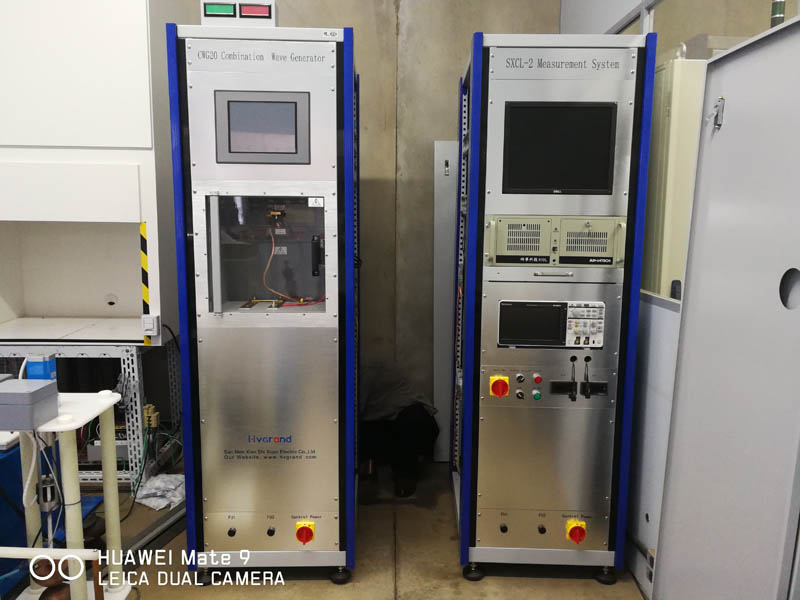

Combination Wave Generator 20kV 10kA Surge Generator

Surge generator (combination wave generator) can be used to generate impulse of exponential shapes to perform high energy surge tests. The system can output 8/20μs, 10/350μs, 10/700μs, 5/300μs according to the customer's requirement.
Product Brochure Send an Inquiry

Additional Product Information

Features & Benefits
  1. Different impulse modules for up gradation in the future, easy for operation
  2. Automatic polarity switching
  3. Peak voltage and current monitoring
  4. Integrated large test cabinet with dimension of 40*40*30cm
  5. Open structure for expand waveforms
  6. Easy operation and maintenance
  7. Liquid insulation in the impulse capacitors is made of castor oil which offers optimal environmental compatibility (no PCBs). The impulse capacitors have very low inductance, high quality and long service life.
  8. Considerate safety measures
  9. Door safety interlock



Applications

SPD testing, surge immunity test for electrical and electronic equipment to unidirectional surges caused by overvoltages from switching and lightning transients

Technical Parameters
Model No Open circuit voltage waveform

（1.2/50μs ）

 Short circuit current Waveform（8/20μs） Output Impedance Impulse repetition
CWG6 1~6kV 0.5~3kA 2Ω 3 pulses/minute
CWG10 1~10kV 0.5~5kA 2Ω 2 pulses/minute
CWG20 1~20kV 1~10 kA 2Ω 2 pulses/minute
CWG30 1~30kV 1.5~15kA 2Ω 2 pulses/minute

Optional

  • Different impulse modules for your choice
Impulse module no Output waveform Output range Output Impedance Impulse repetition
JXIM-01 Combination waveform

10/700μs



 1~10kV 40Ω 2 pulses/minute
Combination waveform

5/300μs

 25~250A
JXIM-02 10/350μs 1~5kA 12Ω 2 pulses/minute
JXIM-03 10/1000μs 75~375A 37Ω 2 pulses/minute
JXIM-04 8/20μs 5~30kA 0.5Ω 2 pulses/minute
  • AC or DC power source for operating duty test

Coupling/Decoupling network

Standards

IEC61000-4-5, IEC61643.11,IEC61643.21,UL1449

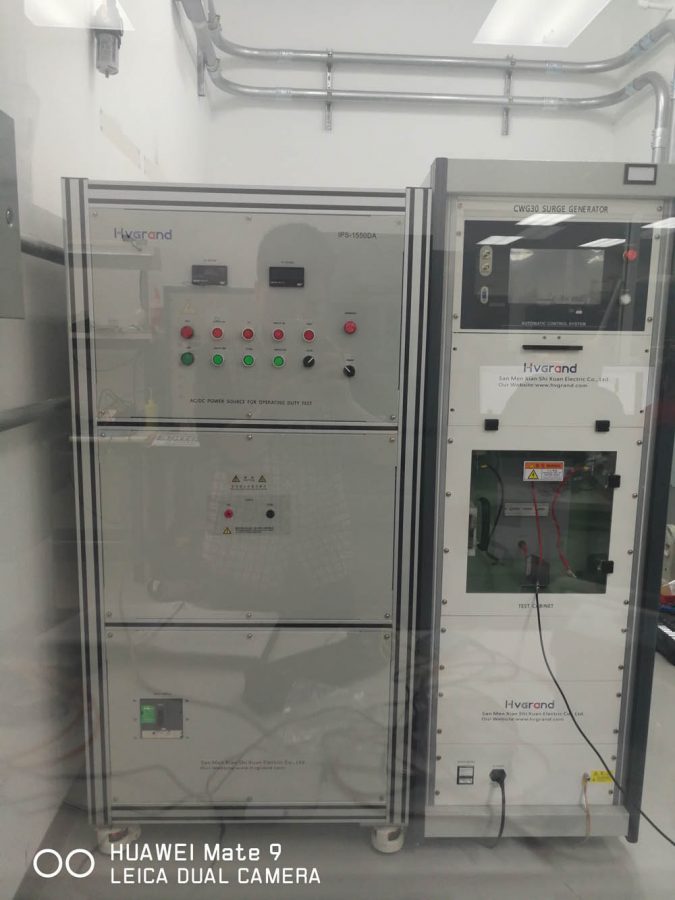

Projects
  • ptr
  • ptr
