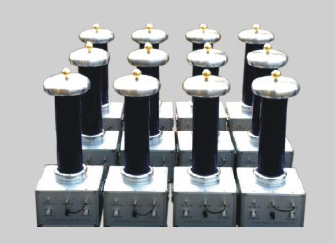

Universal Voltage Divider

Universal voltage divider can be used for measurement of AC voltage, DC voltage ,lightning impulse and switching impulse.

Additional Product Information

Applications

Universal voltage divider can be used for measurement of AC voltage, DC voltage ,lightning impulse and switching impulse.

Technical Parameters

Rated voltage: AC from 10kV to 800kV, DC from 10kV to 1200kV, SI (250/2500μs) from 10kV to 1300kV, BIL (1.2/50μs) from 10kV to 1800kV;

Resistance deviation: ≤±5%;

AC Measuring accuracy: ≤±1%;

DC Measuring accuracy: ≤±1%;

Impulse Measuring accuracy: ≤±3%;

Square wave response time:<100ns;

Overshoot: <20%;

Partial discharge:≤5pC.



Model No Rated AC Voltage

(kV)

Rated DC Voltage

(kV)

Rated Voltage S.I. 250/2500μs (kV) Rated Capacitance (pF) Rated Resistance (MΩ)
JXBF-550 550 700 1200 400 500
JXBF-400/400 550 650 150 80
JXBF-363 363 465 950 400 400
JXBF-252 252 350 550 400 500
JXBF-40.5/300 40.5 60 100 300 40
JXBF-40.5/75 40.5 75 70 5
Standards

IEC60060
