20kV Surge Generator for LV Panels

The surge generator can test the load with maximum 30nF (measuring cable included). Impedance is adjustable.

Automatic control and measurement system;

Door interlock;

Emergency stop button

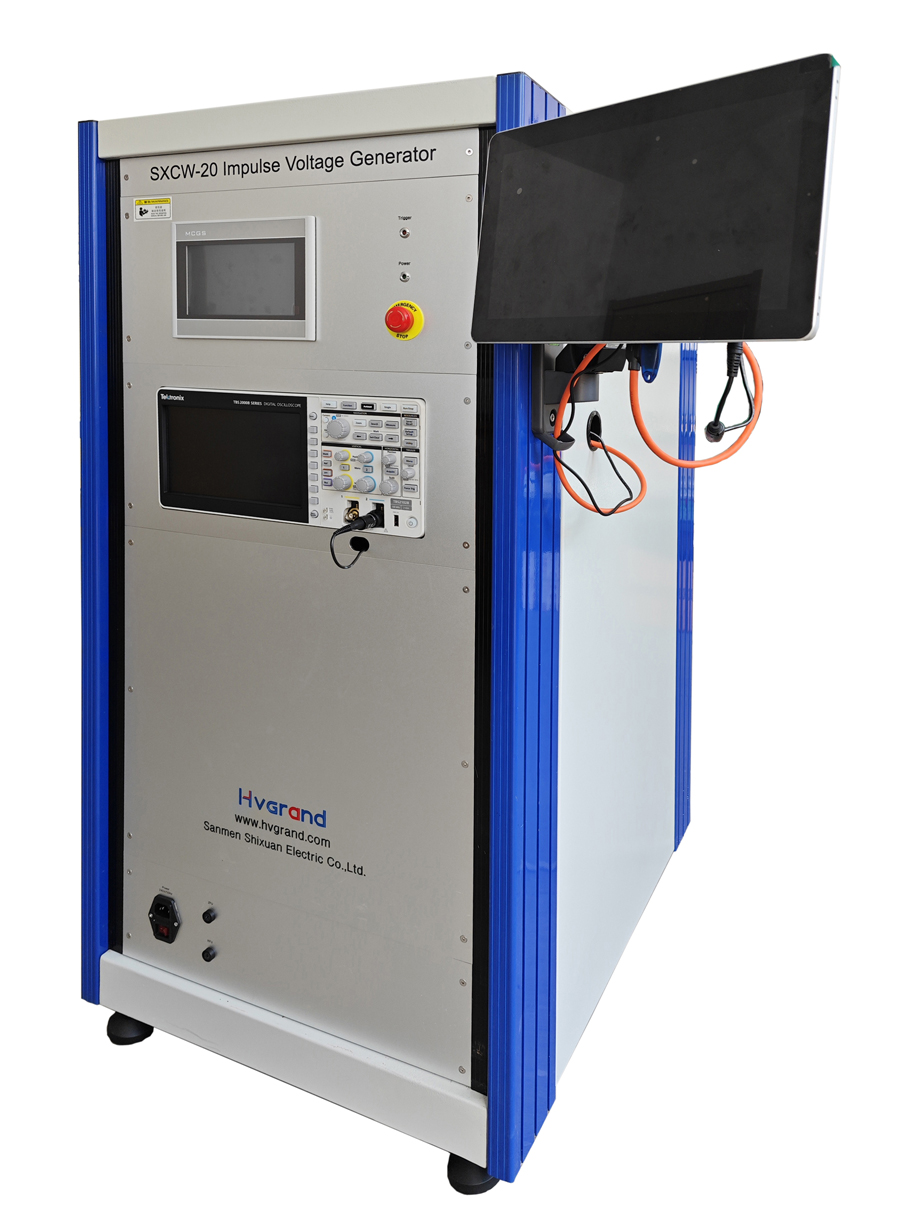

GSCW-20 surge generator can be used to generate lightning impulse voltage (1.2/50μs upto 20kV) for the testing of LV products.
The generator can test the load with maximum 30nF (measuring cable included). Impedance is adjustable.

Open circuit voltage 1.2/50μs: 2~20kV;

T1=1.2μs ± 30%, T2=50 ± 20%;

Output impedance:500Ω,50Ω, 20 Ω adjustable;

Compensation capacitor:5nF, 10nF
