AC Test Transformer

AC test transformer is applicable for the AC voltage withstand test and partial discharge test of different insulation materials and electrical apparatus. They are widely used in the electrical apparatus manufacturers, electric power department, research institute and universities. The possibility of stacking several transformers allows reaching very high voltages by keeping a reasonable floor space.

Product Brochure Send an Inquiry

Additional Product Information

Features & Benefits

Compact dimensions with minimum space requirements;
Over voltage protection and over current protection;
Protection of the system during flashover of the test objects;
Low PD noise level to enable sensitive PD measurement at the test object;

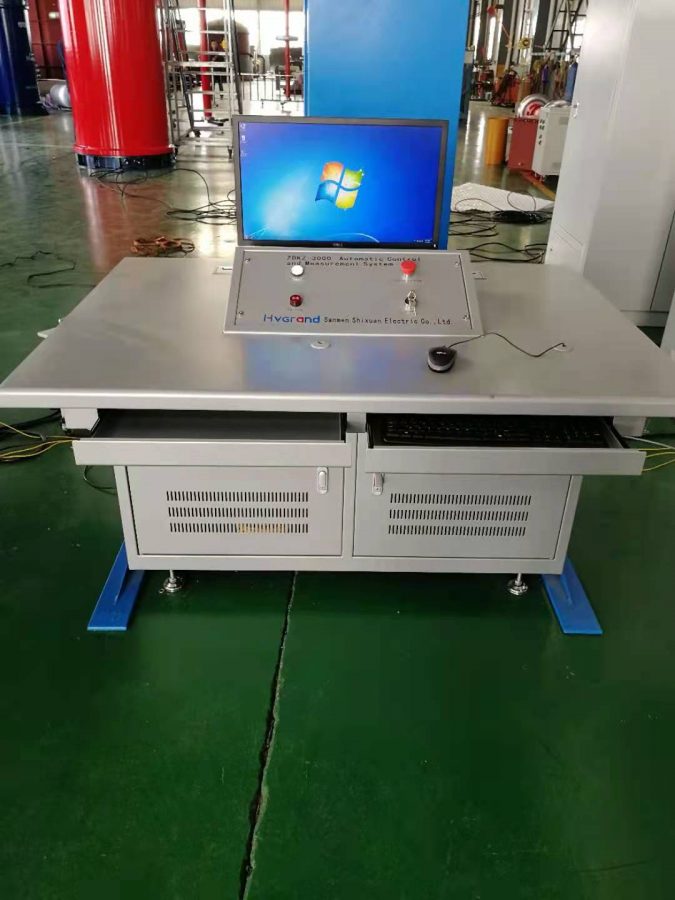

Emergency button stop at the control desk;

Applications

AC voltage withstand test and partial discharge test of below products:

Insulators in dry, wet or polluted conditions
Medium and high voltage Switchgear
Instrument transformer, GIS, VT, CT
Circuit breaker
Power and distribution transformers
Power XLPE cables
Bushings
Reactors, Capacitors

Technical Parameters

Model No.	Maximum Output Voltage	Rated Output Current	PD Level
Model No.	(kV)	(A)	PD Level
SXAC-20/100	100	0.2	<3pC
SXAC-50/100	100	0.5	<3pC
SXAC-100/200	200	0.2	<3pC
SXAC-100/200	200	0.5	<3pC
SXAC-200/200	200	1	<3pC
SXAC-50/250	250	0.2	<3pC
SXAC-250/250	250	1	<3pC
SXAC-500/250	250	2	<3pC
SXAC-60/300	300	0.2	<3pC
SXAC-150/300	300	0.5	<3pC
SXAC-300/300	300	1	<3pC
SXAC-80/400	400	0.2	<3pC
SXAC-200/400	400	0.5	<3pC
SXAC-400/400	400	1	<5pC
SXAC-100/250*2	500	0.2	<5pC
SXAC-250/250*2	500	0.5	<5pC
SXAC-500/250*2	500	1	<5pC
SXAC-300/300*2	600	0.5	<5pC
SXAC-600/300*2	600	1	<5pC
SXAC-350/350*2	700	0.5	<5pC
SXAC-700/350*2	700	1	<5pC
SXAC-800/400*2	800	1	<5pC

Standards

IEC60060

Projects

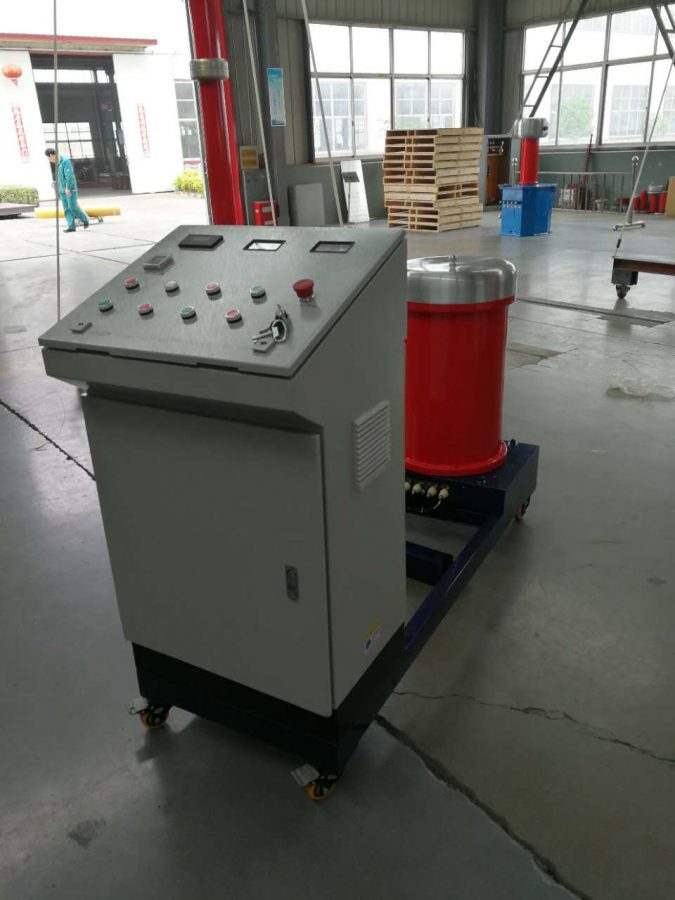

100kV 5kVA Test Transformer

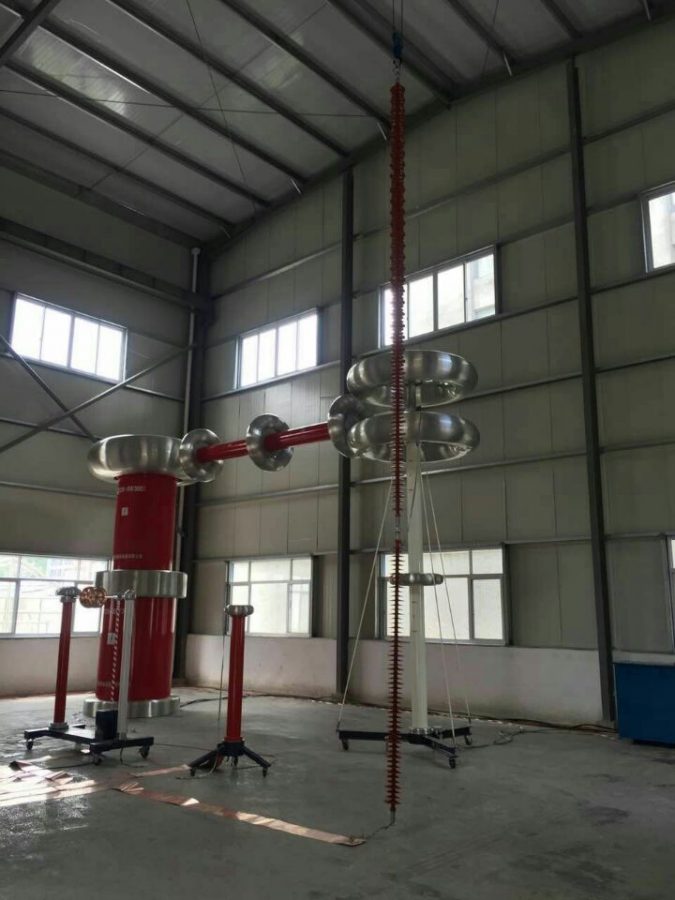

600kV 0.5A Test Transformer for Insulator Testing

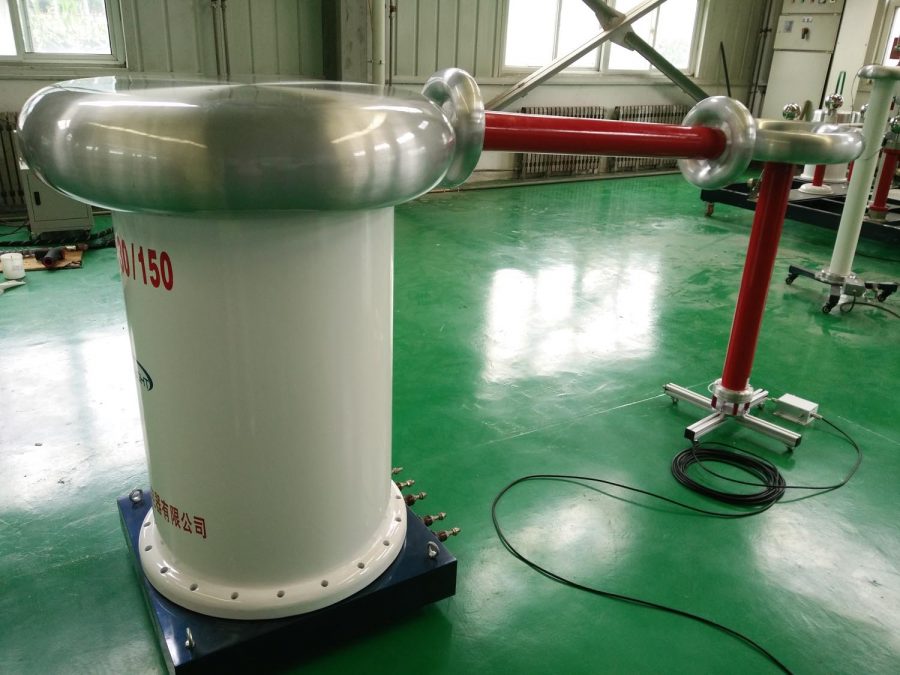

150kV AC Test Transformer

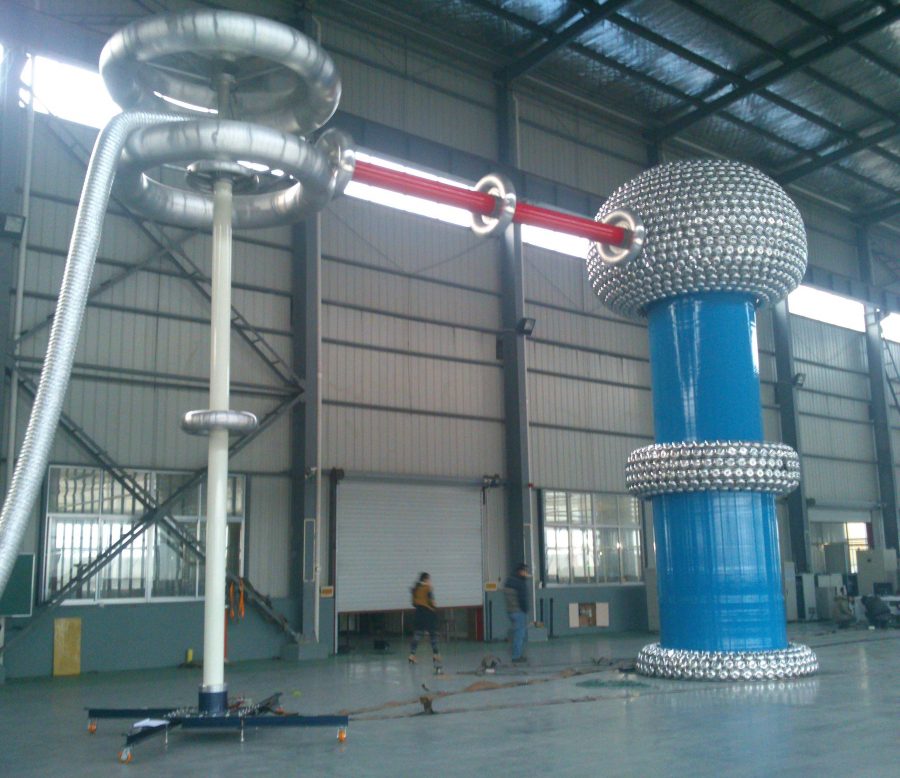

800kV 1A Test Transformer
